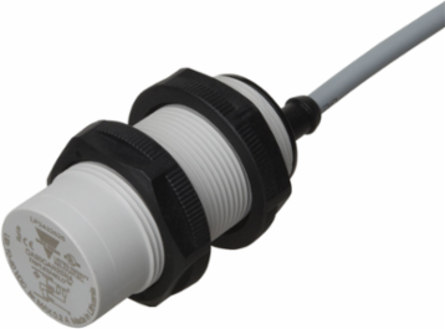

Carlo Gavazzi CA30CAN25NA Capacitive Proximity Sensor, NPN Output, 25mm Detection Range, IP67/IP68/IP69K
- MPN: CA30CAN25NA
- PPN: CLG-CA30CAN25NA
CAD
$335.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive Proximity Sensor, NPN Output, 25mm Detection Range, IP67/IP68/IP69K
Documentation & Downloads
Specifications
Additional
| Output Configuration | Complementary (NO+NC) |
|---|---|
| Supply Voltage | 10-40 VDC |
| Switching Frequency | 50 Hz |
| Detection Range | 25 mm non-flush |
| Voltage Type | DC |
| Storage Temperature | -40 to +85 C |
| Length | 61 mm |
| Housing Style | Cylindrical, threaded barrel |
| Cable Length | 2 m |
| Coating Housing | Other |
| Degree of Protection (IP) | IP67, IP68, IP69K |
| Protection | Short-circuit, reverse polarity, transients |
| Approval According to CSA | No |
| Approved According to UR | No |
| With Monitoring Function Downstream Switching Devices | No |
| Number of Protected Semiconductor Outputs | 2 |
| Repeat Accuracy | 5% |
| Power On Delay | 200 ms |
| Degree of Pollution | 3 |
| Type of Actuation | Metallic Target |
| Item Code | AMB30-A | AMB30-S |
| Product Main Family Group | Capacitive sensors |
| Output Type | NPN |
|---|---|
| Output Current | 200 mA |
| Response Time | 10 ms |
| Adjustable Sensing Distance | 4 to 30 mm non-flush |
| Operating Temperature | -30 to +85 C |
| Max Temperature on Sensing Face | 120 C |
| Diameter | 30 mm |
| Connection Type | Cable |
| Housing Material | Plastic (PBT, 30% glass reinforced) |
| Cable Material | PVC, oil proof, grey |
| Degree of Protection (NEMA) | 1, 2, 4, 4X, 5, 6, 6P, 12 |
| Approval According to UL | Yes |
| Approval According to ECOLAB | Yes |
| Compression-resistant | No |
| Suitable for Safety Functions | No |
| Number of Semiconductor Outputs with Signalling Function | 2 |
| Hysteresis | 3 - 20% |
| Tightening Torque | 7.5 Nm |
| MTTFd | 829 years @ 40 C |
| Setting Procedure | Manual adjustment |
| Product Main Family | Sensors |
