Balluff

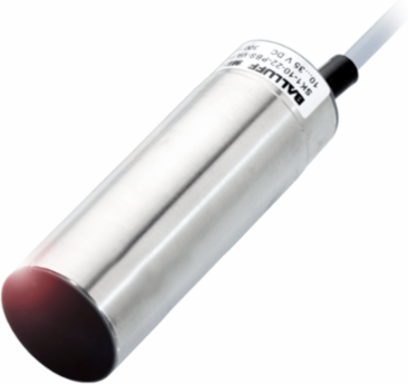

Balluff BCS D22V4M1-POC10C-EV02 Capacitive Sensor, Stainless Steel, 2-10 mm Range, IP67

Capacitive Sensor, Stainless Steel, 2-10 mm Range, IP67
  • MPN: BCS D22V4M1-POC10C-EV02
  • PPN: BAL-BCS0034

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$263.07/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Series
D22
Connection
Cable, 2.00 m, PVC
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PVC
Operating voltage Ub
10-35 VDC
IP rating
IP67
Installationfor flush mounting
Switching outputPNP Normally closed (NC)
Range2-10 mm
Housing materialStainless steel (1.4301)
Ambient temperature-30-60 °C
Approval/ConformityCE, cULus, WEEE

Downloads
