Schneider Electric LC1DFKP7 TeSys Deca Capacitor Contactor 12.5kVAR 3P 230V AC Coil 45mm Width
- MPN: LC1DFKP7
- PPN: SCH-LC1DFKP7
CAD
$205.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

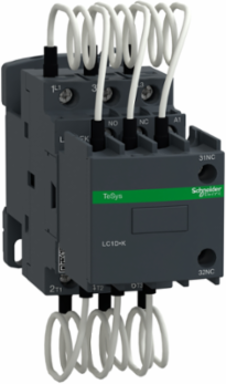

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 12.5kVAR@400V 50Hz (21kVAR@690V). It provides a 230V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, Philippines

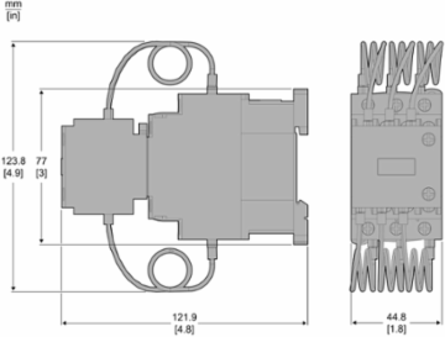

Depth121 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
Maximum Operating Rate240 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Support
- DIN rail, plate
- Range
- TeSys, TeSys Deca
- Certificate Agency
- IECEE CB Scheme, UKCA
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contactor Application
- power factor correction
- Device Short Name
- LC1DFK
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- TeSys Deca
- Returnability
- No
- Sustainable Packaging
- Yes
- Utilisation Category
- AC-6b
- Control Circuit Voltage 18 Control Circuit Voltage
- 230 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type Capacitor duty contactor, a control circuit voltage 220V, a power circuit voltage 690V and a rated operational current 200A.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 67
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Package Weight(Lbs)
- 552.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Product NameTeSys LC1D.K, TeSys Deca
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals
Connections - Terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 2 1.5-4 mm² - cable stiffness: solidpower circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible without cable endpower circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable endpower circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 2 1.5-4 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 1.5-6 mm² - cable stiffness: solid
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1924
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeLC1D
Device Applicationcontrol
Electrical Durability300000 cycles 400 V200000 cycles 690 V
Pole Contact Composition3 NO
Product Or Component Typecapacitor duty contactor
Reactive Power Rating7 kvar 230-230 V AC 50 Hz 60 °C12.5 kvar 400-400 V AC 50 Hz 60 °C13 kvar 440-440 V AC 50 Hz 60 °C21 kvar 690-690 V AC 50 Hz 60 °C
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1112074EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal115 mm
[Uc] Control Circuit Voltage230 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
