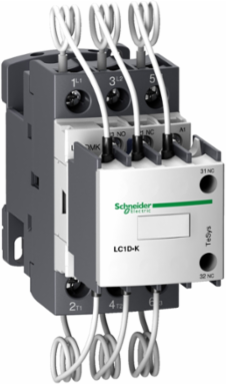

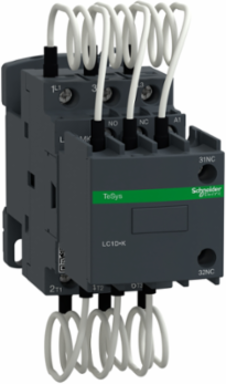

Schneider Electric LC1DMKP7 TeSys Deca Capacitor Contactor 25kVAR 400V 3NO 230V Coil, DIN Rail Mounted
- MPN: LC1DMKP7
- PPN: SCH-LC1DMKP7
CAD
$333.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 25kVAR@400V 50Hz (42kVAR@690V). It provides a 230V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Indonesia, Philippines, United States
Depth127 mm
Complementary Attributes
- Control Circuit Type
- AC 50/60 Hz
Maximum Operating Rate240 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Location In System
- line interruption, inside delta interruption
- Product Name
- TeSys LC1D.K, TeSys Deca
- Certificate Agency
- IECEE CB Scheme, UKCA
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1924
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- LC1D
- Device Application
- control
- Electrical Durability
- 300000 cycles 400 V200000 cycles 690 V
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- capacitor duty contactor
- Reactive Power Rating
- 14 kvar 230-230 V AC 50 Hz 60 °C25 kvar 400-400 V AC 50 Hz 60 °C27 kvar 440-440 V AC 50 Hz 60 °C42 kvar 690-690 V AC 50 Hz 60 °C
- Software Version
- v5.9.4
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminalspower circuit 2.5 N.m screw clamp terminals
- Utilisation Category
- AC-6b
- Control Circuit Voltage 18 Control Circuit Voltage
- 230 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type Capacitor duty contactor, a control circuit voltage 220V, a power circuit voltage 690V and a rated operational current 200A.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 67
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Package Weight(Lbs)
- 611.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting SupportDIN rail, plate
RangeTeSys, TeSys Deca
Connections - Terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 2 2.5-6 mm² - cable stiffness: solidpower circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible without cable endpower circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible with cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid, power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: flexible without cable end
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contactor Applicationpower factor correction
Device Short NameLC1DMK
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys Deca
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1112074EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal125 mm
[Uc] Control Circuit Voltage230 V AC 50/60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1112074EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1112074EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- capacitor duty contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC001079
ETIM 9EC001079
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
