Schneider Electric LC1DPKM7 TeSys Deca Capacitor Contactor 30kVAR 400V 220V AC 50/60Hz 3P 55mm
Schneider Electric LC1DPKM7 TeSys Deca Capacitor Contactor 30kVAR 400V 220V AC 50/60Hz 3P 55mm
- MPN: LC1DPKM7
- PPN: SCH-LC1DPKM7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$476.63/ EA
Description

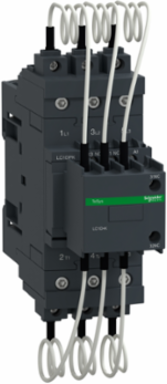

TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400V 50Hz (50kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Specifications
Environment
- Height
- 166 mm
- Net Weight
- 1.3 kg
- Ip Degree Of Protection
- IP20 front face IEC 60529
- Width
- 55 mm
Ambient Air Temperature For Operation-5-60 °C
Ambient Air Temperature For Storage-60-80 °C
Operating Altitude0...3000 m
Depth156 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111274EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Auxiliary Contacts Type
- mechanically linked 1 NO + 2 NC IEC 60947-5-1
Specifications
- Product Certifications
- IECEE CB Scheme || UL || CSA || UKCA
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hz
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Control Circuit Type
- AC 50/60 Hz
- Contactor Application
- power factor correction
- Product Name
- TeSys LC1D.K || TeSys Deca
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-6b
- Auxiliary Contact Composition
- 1 NO + 2 NC instantaneous
- Electrical Durability
- 300000 cycles 400 V || 200000 cycles 690 V
- Device Application
- control
[Uc] Control Circuit Voltage220 V AC 50/60 Hz
Reactive Power Rating17 kvar 230-230 V AC 50 Hz 60 °C || 30 kvar 400-400 V AC 50 Hz 60 °C || 32 kvar 440-440 V AC 50 Hz 60 °C || 50 kvar 690-690 V AC 50 Hz 60 °C || 16.5 kvar 230-230 V AC 60 Hz 60 °C || 33.3 kvar 460-460 V AC 60 Hz 60 °C || 40 kvar 575-575 V AC 60 Hz 60 °C
Mounting SupportDIN rail || plate
Device Location In Systeminside delta interruption || line interruption
Product Or Component Typecapacitor duty contactor
RangeTeSys || TeSys Deca
Connections - Terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid || power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid || power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end || power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable end
Maximum Operating Rate240 cyc/h
Tightening Torquecontrol circuit 1.7 N.m screw clamp terminals || power circuit 5 N.m EverLink BTR screw connectors 1-25 mm² || power circuit 8 N.m EverLink BTR screw connectors 35-35 mm²
Poles Description3P
Device Short NameLC1DPK
