Schneider Electric LC1DPKV7 TeSys Deca Capacitor Contactor 30kVAR 400V AC 50/60Hz 55mm Width
- MPN: LC1DPKV7
- PPN: SCH-LC1DPKV7
- UNSPSC: 39121529
CAD
$476.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

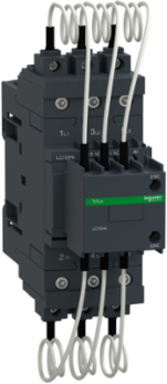

TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 30kVAR@400V 50Hz (50kVAR@690V). It provides a 400V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831.
Features
- New modern look & feel of all machines
- Designed to meet the requirements of industrial and HVAC applications
- Easier to install and operate with multi-standard screws
- With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Depth | 156 mm |
|---|
Complementary Attributes
| Control Circuit Type | AC 50/60 Hz |
|---|---|
| Uc Control Circuit Voltage | 400 V AC 50/60 Hz |
| Maximum Operating Rate | 100 cyc/h |
|---|---|
| Ue Rated Operational Voltage | power circuit 690 V AC 50/60 Hz |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Location In System | line interruption, inside delta interruption |
| Product Name | TeSys LC1D.K, TeSys Deca |
| Connections Terminals | control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solidpower circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with or without cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable endpower circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid, power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with or without cable end |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contactor Application | power factor correction |
| Device Short Name | LC1DPK |
| Number Of Poles | 3P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | TeSys Deca |
| Returnability | No |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Height Nominal | 166 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Support | DIN rail, plate |
| Range | TeSys, TeSys Deca |
| Certificate Agency | IECEE CB Scheme, UL, CSA, UKCA |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | LC1D |
| Device Application | control |
| Electrical Durability | 300000 cycles 400 V200000 cycles 690 V |
| Pole Contact Composition | 3 NO |
| Product Or Component Type | capacitor duty contactor |
| Reactive Power Rating | 17 kvar 230-230 V AC 50 Hz 60 °C30 kvar 400-400 V AC 50 Hz 60 °C32 kvar 440-440 V AC 50 Hz 60 °C50 kvar 690-690 V AC 50 Hz 60 °C16.5 kvar 230-230 V AC 60 Hz 60 °C33.3 kvar 460-460 V AC 60 Hz 60 °C40 kvar 575-575 V AC 60 Hz 60 °C |
| Software Version | v5.9.4 |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminalspower circuit 5 N.m EverLink BTR screw connectors 1-25 mm²power circuit 8 N.m EverLink BTR screw connectors 35-35 mm² |
| Utilisation Category | AC-6b |
| Control Circuit Voltage 18 Control Circuit Voltage | 400 V |
| Data Source | extrapolated product |
| Width Nominal | 55 mm |
| Customs Code | 8536490065 |
| Functional Unit Description | Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control.The functional unit is characterized by a type Capacitor duty contactor, a control circuit voltage 220V, a power circuit voltage 690V and a rated operational current 200A. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 67 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -60-80 °C, -60-80 °C |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0 |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-06-17 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -5-60 °C, -5-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1112074EN |
| Ip Degree Of Protection | IP20 front face IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1112074EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | capacitor duty contactor |
|---|
| Range Of Product | TeSys Deca |
|---|
ETIM
| ETIM 8 | EC001079 |
|---|---|
| ETIM 10 | EC001079 |
| ETIM 9 | EC001079 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
