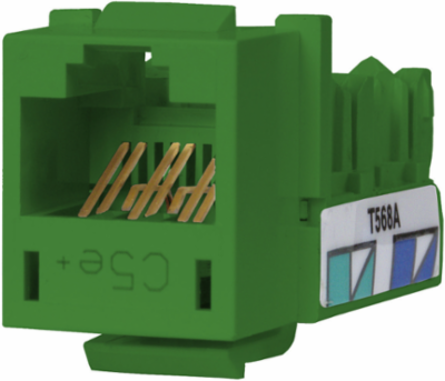

Hubbell Premise Wiring HXJ5EGN24 XCELERATOR Telephone/Data Jack Cat 5e, Quick-Lace Termination, 0.86 x 0.67 x 1.29 Inch
Hubbell Premise Wiring HXJ5EGN24 XCELERATOR Telephone/Data Jack Cat 5e, Quick-Lace Termination, 0.86 x 0.67 x 1.29 Inch
- MPN: HXJ5EGN24
- UPC: 662620663685
- PPN: HBL-HXJ5EGN24
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$190.62/ EA
Description
Telephone/Data, Jack, XCELERATOR, Cat 5e
Features
- Third Party Verified Category 5E Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Quick-Lace Termination
Specifications
Specifications
- Contact Point Material
- Beryllium Copper with Gold Over Plating
- Width
- 4.440 in
- Industry Standard(s)
- ANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
- Performance
- TIA Cat 5e Component
- Application
- Up to 2.5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Special Features
- Quick-Lace Termination
- Sub Brand
- XCELERATOR™
- Type
- Modular Jack
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 2000 Plug
- Class Code
- A60
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HXJ5EGN25
- Material - Mounting Hardware
- Keystone
- Series
- XCELERATOR™ Series
- BOX SIZE
- 7.100x11.000x9.200 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620663685
- Case - Total Units
- 20 EA
- Each - Number of Sub Packs
- 1
- Package - Total Units
- 1 EA
- Pallet - GTIN - Package
- 70662620663684
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUS
Each - Width4.440 in
Number of Pieces in Package24
Size0.86 (22) x 0.67 (?17) x 1.29 (?33)
ColorGreen
Contact Resistance100 Ohm
MountingSnap-fit
StandardANSI/TIA/EIA-568 Category 5e component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Description - InvoiceJACK, HXJ,CAT5E,8POS,UNI A/B,GN,24PK
Harmonization Code8536698000
MSDS FlagNo
Sub Class CodeA60A540
Material - HousingHigh-impact thermoplastic (UL 94V-0)
Base Unit of MeasurePK
Carton - Gross Weight per Pack1.360 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Case Weight12.350 lb.
Each - Pack DescriptionPack
Package Quantity1 EA
Pallet Height36.900 in
Pallet Weight148.200 lb.
Certifications
- EU RoHS Indicator
- Yes
