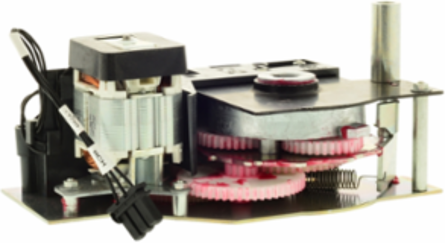

Square D S48530 MasterPacT NT/NW SPRING CHARGING MOTOR 440-480VAC
- MPN: S48530
- UPC: 785901688396
- PPN: SCH-S48530
CAD
$2199.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MasterPacT NT/NW SPRING CHARGING MOTOR 440-480VAC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Rated Voltage
- 440-480 V AC
Important Information Attributes
- Range Of Product
- MasterPact NT, MasterPact NW
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 4.1082593
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.218954747
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Application
- automatic spring charging
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2307034EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Category
- control accessory
- Package Weight(Lbs)
- 2.517 kg
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2.5515
- Customs Code
- 8538908120
Carbon Footprint Of The Distribution Phase [A4]0.245840968, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.375965205, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.084016
Local Publishable Date2025-11-13
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2307034EN
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Circuit Breaker TypeY-frame
Device Short NameMCH
Mounting Modedrawout
Product Or Component Typespring charging motor
Software Versionv5.9.4
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe electric Motor mechanism is equipped as standard with a limit switch contact CH that signals the “charged” position of the mechanism (springs charged), during 10 years
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %74
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.1405
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.1405
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 14.03303622
- Environmental Disclosure
- ENVPEP2307034EN
- Packaging Made With Recycled Cardboard
- No
- Pep Code
- ENVPEP2307034EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2307034EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- MasterPact NT, MasterPact NW
Product Or Component Typespring charging motor
