Schneider Electric BMP1001F3NA2A synchronous motor - BMP - 480 VAC - 0.95 kW - IP65 - IEC
Schneider Electric BMP1001F3NA2A synchronous motor - BMP - 480 VAC - 0.95 kW - IP65 - IEC
- MPN: BMP1001F3NA2A
- PPN: SCH-BMP1001F3NA2A
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1801.85/ EA
Description

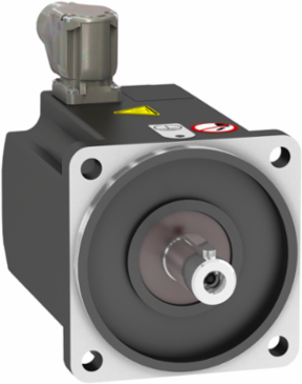

synchronous motor - BMP - 480 VAC - 0.95 kW - IP65 - IEC
Specifications
Specifications
- Product Compatibility
- variable speed drive ATV32 0.75 kW 400 V three phase || variable speed drive ATV32 1.1 kW 400 V three phase || variable speed drive ATV320 0.75 kW 380...500 V three phase || variable speed drive ATV320 1.1 kW 380...500 V three phase
- Mounting Support
- international standard flange
- Product Or Component Type
- synchronous motor
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Nominal Speed
- 3000 rpm ATV32 0.75 kW 400 V three phase || 3000 rpm ATV32 1.1 kW 400 V three phase || 3000 rpm ATV320 0.75 kW 400 V three phase || 3000 rpm ATV320 1.1 kW 400 V three phase
- Nominal Torque
- 2.39 N.m ATV32 0.75 kW 400 V three phase || 2.39 N.m ATV32 1.1 kW 400 V three phase || 2.39 N.m ATV320 0.75 kW 400 V three phase || 2.39 N.m ATV320 1.1 kW 400 V three phase
Maximum Mechanical Speed3600 rpm
Holding Brakewithout
Nominal Output Power750 W ATV32 0.75 kW 400 V three phase || 750 W ATV32 1.1 kW 400 V three phase || 750 W ATV320 0.75 kW 400 V three phase || 750 W ATV320 1.1 kW 400 V three phase
Shaft Endkeyed
Electrical Connectionrotatable right-angled connector
Device Short NameBMP
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Complementary
- Circle Diameter Of The Mounting Holes
- 115-115 mm
- Number Of Motor Stacks
- 1
- Number Of Motor Poles
- 5
- Centring Collar Depth
- 3.5 mm
- Network Number Of Phases
- three phase
- Maximum Current Irms
- 3.5 A ATV32 0.75 kW 400 V three phase || 4.5 A ATV32 1.1 kW 400 V three phase || 3.5 A ATV320 0.75 kW 400 V three phase || 4.5 A ATV320 1.1 kW 400 V three phase
- Centring Collar Diameter
- 95 mm
- Motor Flange Size
- 100 mm
- Number Of Mounting Holes
- 4
- Key Width
- 6 mm
- Mounting Holes Diameter
- 9 mm
- Maximum Operating Frequency
- 300 Hz ATV32 0.75 kW 400 V three phase || 300 Hz ATV32 1.1 kW 400 V three phase || 300 Hz ATV320 0.75 kW 400 V three phase || 300 Hz ATV320 1.1 kW 400 V three phase
- Range Compatibility
- Altivar 32 || Altivar Machine ATV320
- Torque Constant
- 1.71 N.m/A 40 °C
Maximum Radial Force Fr900 N 1000 rpm || 720 N 2000 rpm || 630 N 3000 rpm || 570 N 4000 rpm
Rotor Inertia3.19 kg.cm²
Maximum Axial Force Fa0.2 x Fr
Shaft Length40 mm
Length128.6 mm
Net Weight3.34 kg
Stator Inductance15.3 mH for q-axis winding 40 °C || 13.28 mH for d-axis winding 40 °C
[Us] Rated Supply Voltage480 V
Shaft Diameter19 mm
Minimum Operating Frequency25 Hz ATV32 0.75 kW 400 V three phase || 25 Hz ATV32 1.1 kW 400 V three phase || 25 Hz ATV320 0.75 kW 400 V three phase || 25 Hz ATV320 1.1 kW 400 V three phase
Type Of Coolingnatural convection
Stator Resistance4.54 Ohm 40 °C
Nominal Operating Frequency250 Hz ATV32 0.75 kW 400 V three phase || 250 Hz ATV32 1.1 kW 400 V three phase || 250 Hz ATV320 0.75 kW 400 V three phase || 250 Hz ATV320 1.1 kW 400 V three phase
Contractual warranty
- Warranty
- 18 months
