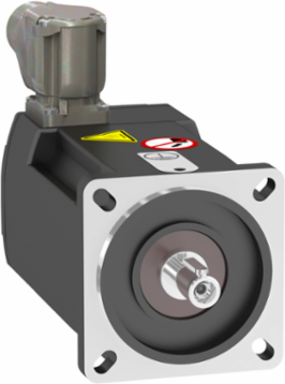

Schneider Electric BMP0702F3NA2A Synchronous Motor 0.55 kW, 480 VAC, IP65, 3 Phase

MPN: BMP0702F3NA2A
PPN: SCH-BMP0702F3NA2A

$1556.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric BMP0702F3NA2A is a robust synchronous motor engineered for high-performance applications in automation and control environments. With a power rating of 0.55 kW and operating at 480 VAC, this three-phase motor is built to handle demanding workloads while ensuring efficiency and reliability. Its IP65 rating guarantees protection against dust and water ingress, making it suitable for use in various industrial settings where environmental factors are a concern. Ideal for general machinery drives, this motor is designed to provide consistent and precise operation, contributing to the overall efficiency of your systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Germany, France, United States

Physical Attributes

Key Width	4 mm
Shaft Length	23 mm

Motor Flange Size	70 mm

Complementary Attributes

Maximum Current Irms	2.9 A ATV32 0.55 kW 400 V three phase, 2.9 A ATV320 0.55 kW 400 V three phase
Minimum Operating Frequency	25 Hz ATV32 0.55 kW 400 V three phase, 25 Hz ATV320 0.55 kW 400 V three phase
Maximum Mechanical Speed	3600 rpm

Maximum Operating Frequency	300 Hz ATV32 0.55 kW 400 V three phase, 300 Hz ATV320 0.55 kW 400 V three phase
Maximum Axial Force Fa	0.2 x Fr
Maximum Radial Force Fr	710 N 1000 rpm560 N 2000 rpm490 N 3000 rpm450 N 4000 rpm

Important Information Attributes

Nominal Operating Frequency	250 Hz ATV32 0.55 kW 400 V three phase, 250 Hz ATV320 0.55 kW 400 V three phase
Nominal Torque	1.75 N.m ATV32 0.55 kW 400 V three phase, 1.75 N.m ATV320 0.55 kW 400 V three phase
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Centring Collar Diameter	60 mm
Device Short Name	BMP
Holding Brake	without
Mounting Support	international standard flange
Number Of Motor Stacks	2
Phase	three phase
Product Or Component Type	synchronous motor
Rotor Inertia	1.13 kg.cm²
Shaft End	keyed
Sustainable Packaging	No
Type Of Cooling	natural convection
Pep Code	ENVPEP111049EN
[Us] Rated Supply Voltage	480 V
Package Weight(Lbs)	2.783 kg
Warranty (In Months)	18

Nominal Speed	3000 rpm ATV32 0.55 kW 400 V three phase, 3000 rpm ATV320 0.55 kW 400 V three phase
Stator Inductance	20.7 mH for q-axis winding 40 °C, 20.7 mH for d-axis winding 40 °C
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	Motion - drive & motor
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Product Kit Identifier	N
Circle Diameter Of The Mounting Holes	75-82 mm
Electrical Connection	rotatable right-angled connector
Mounting Holes Diameter	5.5 mm
Number Of Motor Poles	5
Number Of Mounting Holes	4
Product Availability	Non-Stock - Not normally stocked in distribution facility
Returnability	No
Shaft Diameter	11 mm
Stator Resistance	6.96 Ohm 40 °C
Torque Constant	1.51 N.m/A 40 °C
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length Total	154 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8501514040

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Environmental Disclosure	ENVPEP111049EN
Ip Degree Of Protection	IP65 standardIP67 with IP67 kit
Packaging Without Single Use Plastic	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	variable speed drive ATV32 0.55 kW 400 V three phasevariable speed drive ATV320 0.55 kW 380...500 V three phase
Pep Code	ENVPEP111049EN
