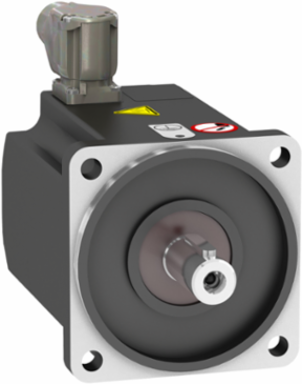

Schneider Electric BMP1002F3NA2A Synchronous Motor 480 VAC 1.5 kW IP65 3000 RPM 4.92 kg
- MPN: BMP1002F3NA2A
- PPN: SCH-BMP1002F3NA2A
CAD
$2212.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This synchronous motor from Schneider Electric is engineered for optimal performance in a variety of automation and control applications. Operating at 480 VAC with a power output of 1.5 kW, it meets demanding operational requirements while maintaining efficiency. With an impressive speed of 3000 RPM, this motor ensures reliable rotational power, making it an excellent choice for general machinery drives. Additionally, its robust IP65 rating guarantees durability and protection against dust and water, allowing it to thrive in challenging environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United States |
|---|
Physical Attributes
| Key Width | 6 mm |
|---|---|
| Shaft Length | 40 mm |
| Motor Flange Size | 100 mm |
|---|
Complementary Attributes
| Maximum Current Irms | 6.2 A ATV32 1.5 kW 400 V three phase, 6.2 A ATV320 1.5 kW 400 V three phase |
|---|---|
| Minimum Operating Frequency | 25 Hz ATV32 1.5 kW 400 V three phase, 25 Hz ATV320 1.5 kW 400 V three phase |
| Maximum Mechanical Speed | 3600 rpm |
| Maximum Operating Frequency | 300 Hz ATV32 1.5 kW 400 V three phase, 300 Hz ATV320 1.5 kW 400 V three phase |
|---|---|
| Maximum Axial Force Fa | 0.2 x Fr |
| Maximum Radial Force Fr | 990 N 1000 rpm790 N 2000 rpm690 N 3000 rpm620 N 4000 rpm |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Nominal Operating Frequency | 250 Hz ATV32 1.5 kW 400 V three phase, 250 Hz ATV320 1.5 kW 400 V three phase |
| Nominal Torque | 4.77 N.m ATV32 1.5 kW 400 V three phase, 4.77 N.m ATV320 1.5 kW 400 V three phase |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 115-115 mm |
| Electrical Connection | rotatable right-angled connector |
| Mounting Holes Diameter | 9 mm |
| Number Of Motor Poles | 5 |
| Number Of Mounting Holes | 4 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Shaft Diameter | 19 mm |
| Stator Inductance | 7.65 mH for q-axis winding 40 °C6.64 mH for d-axis winding 40 °C |
| Sustainable Packaging | No |
| Type Of Cooling | natural convection |
| Pep Code | ENVPEP111049EN |
| [Us] Rated Supply Voltage | 480 V |
| Package Weight(Lbs) | 5.904 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Nominal Speed | 3000 rpm ATV32 1.5 kW 400 V three phase, 3000 rpm ATV320 1.5 kW 400 V three phase |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 95 mm |
| Device Short Name | BMP |
| Holding Brake | without |
| Mounting Support | international standard flange |
| Number Of Motor Stacks | 2 |
| Phase | three phase |
| Product Or Component Type | synchronous motor |
| Rotor Inertia | 6.28 kg.cm² |
| Shaft End | keyed |
| Stator Resistance | 1.75 Ohm 40 °C |
| Torque Constant | 1.56 N.m/A 40 °C |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Length Total | 160.6 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501524000 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP111049EN |
| Ip Degree Of Protection | IP65 standardIP67 with IP67 kit |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | variable speed drive ATV32 1.5 kW 400 V three phasevariable speed drive ATV320 1.5 kW 380...500 V three phase |
| Pep Code | ENVPEP111049EN |
General Attributes
| Phase | three phase |
|---|
| Product Or Component Type | synchronous motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 1500 W ATV32 1.5 kW 400 V three phase, 1500 W ATV320 1.5 kW 400 V three phase |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
