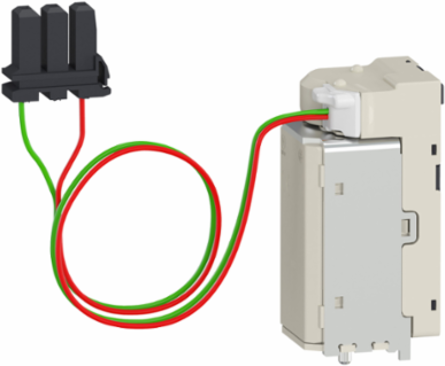

Schneider Electric LV833662SP XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
- MPN: LV833662SP
- PPN: SCH-LV833662SP
CAD
$408.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
XF or MX voltage release, MasterPact MTZ1/MTZ2/MTZ3, standard, 200/250VAC 50/60Hz, 200/250VDC, spare part
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 60 ms on opening MasterPact MTZ1, 60 ms on opening MasterPact MTZ2, 60 ms on opening MasterPact MTZ365 ms on closing MasterPact MTZ1, 80 ms on closing MasterPact MTZ2, 90 ms on closing MasterPact MTZ3
- [Uc] Control Circuit Voltage
- 200...250 V AC 50/60 Hz, 200...250 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.37210782608695653
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.6611869565217394
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Offer Type
- spare part
- Product Or Component Type
- voltage release
- Range
- MasterPact
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Pep Code
- ENVPEP2307032EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 166.000 g
- Take-back
- No
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Voltage Release Typeclosing coil, opening coil
Carbon Footprint Of The Distribution Phase [A4]0.02654508695652174, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.04526395652173913, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.000035545
Local Publishable Date2024-01-12
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2307032EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1943
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Device Applicationcontrol
Mounting Modefixed/drawout
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipment1 instruction sheet
ReturnabilityNo
Supply Holding Power4.5 W
Threshold Tripping Voltage0.7...1.1 Un on opening0.85...1.1 Un on closing
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe MX release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service Duration: 10 years.& 10It complies with IEC 60947-2 standard.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %74
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Carbon Footprint
- 4.105139371086956
- Environmental Disclosure
- ENVPEP2307032EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2307032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Circularity ProfileENVEOLI2307032EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- voltage release
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC001023
ETIM 9EC001023
