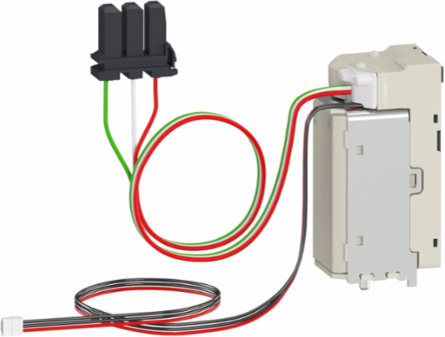

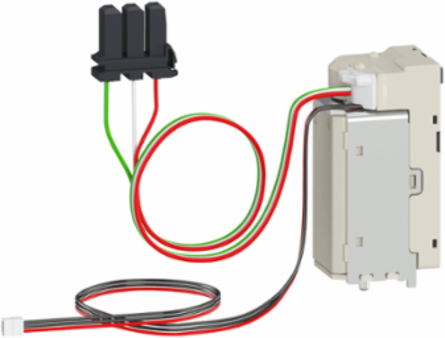

Schneider Electric LV833036SP XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
- MPN: LV833036SP
- PPN: SCH-LV833036SP
CAD
$430.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
XF or MX voltage release, MasterPact MTZ1/2/3, diagnostics and communicating, 200/250VAC 50/60Hz, 200/250VDC, spare part
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Important Information Attributes
- Persona Type Ids
- LC, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Operating Time
- 60 ms on opening MasterPact MTZ1, 60 ms on opening MasterPact MTZ2, 60 ms on opening MasterPact MTZ365 ms on closing MasterPact MTZ1, 80 ms on closing MasterPact MTZ2, 90 ms on closing MasterPact MTZ3
- Voltage Release Type
- closing coil, opening coil
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03164488198757764, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.05395998757763975, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0 kg CO2 eq., 0.000035545
- Local Publishable Date
- 2024-01-12
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2307032EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Control Type
- communicating
- Energy Efficiency Optimized
- False
- Offer Type
- spare part
- Product Or Component Type
- voltage release
- Range
- MasterPact
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Pep Code
- ENVPEP2307032EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 242.0 g
- Take-back
- No
Persona Type NamesContractor, Panel Builder
Market SegmentationCommercial, Industrial
Signalling Functionerror, coil powered, electrical push-button activated, ready to close or open
[Uc] Control Circuit Voltage200/250 V AC 50/60 Hz, 200/250 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.4435965217391304
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.364567701863354
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationcontrol
Mounting Modefixed/drawout
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipment1 instruction sheet
ReturnabilityNo
Supply Holding Power4.5 W
Threshold Tripping Voltage0.7...1.1 Un on opening0.85...1.1 Un on closing
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe MX release instantaneously opens the circuit breaker when energized, the minimum duration of the pulse operating order must be 200 ms. Service Duration: 10 years.& 10It complies with IEC 60947-2 standard.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %74
Nbr. Of Units In Pkg.1
Silicone-freeNo
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Carbon Footprint
- 4.893804638167702
- Environmental Disclosure
- ENVPEP2307032EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2307032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeNo
Circularity ProfileENVEOLI2307032EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- voltage release
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC001023
ETIM 9EC001023
