Weidmuller 1206890000 CH20M22 S PPSC RD 2014
- MPN: 1206890000
- PPN: WDM-1206890000
CAD
$3.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

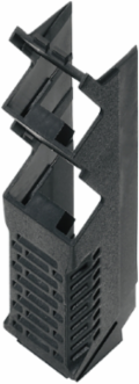

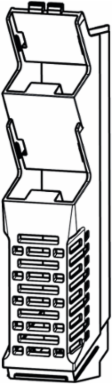

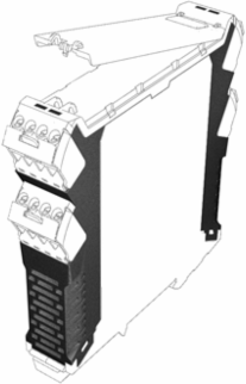

Modular housing, OMNIMATE Housing - series CH20M red, Side element, Width: 22.5 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- Side element
- Number of connection levels
- 2
- Contact to terminal rail
- No
Number of connections8
Number of PCBs per module1
Encapsulation optionNo
Approvals
- ROHS
- Conform

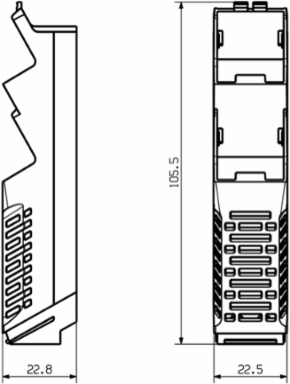

Dimensions And Weights
- Length
- 105.5 mm
- Width
- 22.5 mm
- Height
- 22.83 mm
- Net weight
- 12.3 g
Length (inches)4.154 inch
Width (inches)0.886 inch
Height (inches)0.899 inch
Material Data
- Insulating material
- PA 66 GF 30
- Colour chart (similar)
- RAL 3020
- Comparative Tracking Index (CTI)
- ≥ 550
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 120 °C
Colourred
Insulating material groupII
UL 94 flammability ratingV-0
Operating temperature, min.-40 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
