Weidmuller 1137750000 CH20M45 S 3SC/2PSC BK 2010
- MPN: 1137750000
- PPN: WDM-1137750000
CAD
$5.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

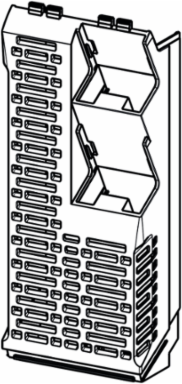

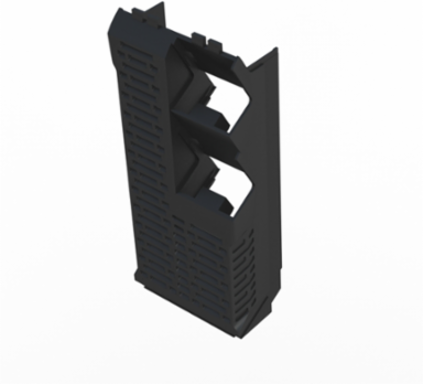

Modular housing, OMNIMATE Housing - series CH20M black, Side element, Width: 45 mm
Documentation & Downloads
Specifications
System Characteristics
| Version | Side element |
|---|---|
| Number of connection levels | 2 |
| Contact to terminal rail | No |
| Number of connections | 8 |
|---|---|
| Number of PCBs per module | 2 |
| Encapsulation option | No |
Approvals
| ROHS | Conform |
|---|

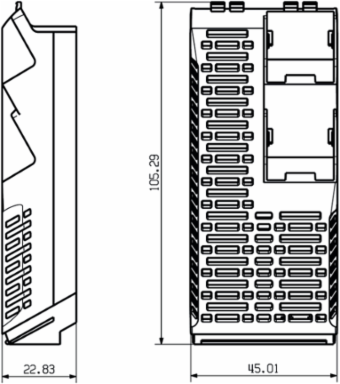

Dimensions And Weights
| Length | 105.49 mm |
|---|---|
| Width | 45 mm |
| Height | 22.83 mm |
| Net weight | 14.7 g |
| Length (inches) | 4.153 inch |
|---|---|
| Width (inches) | 1.772 inch |
| Height (inches) | 0.899 inch |
Material Data
| Insulating material | PA 66 GF 30 |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 550 |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Colour | black |
|---|---|
| Insulating material group | II |
| UL 94 flammability rating | V-0 |
| Operating temperature, min. | -40 °C |
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-90 |
| eClass 10.0 | 27-18-27-92 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-90 |
