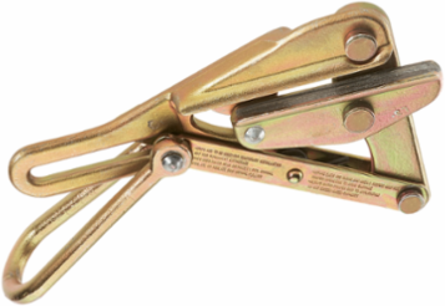

Klein Tools 1628-18 Chicago Grip for 0.75 to 1 Inch Cables, Max Load 15,000 lbs
- MPN: 1628-18
- UPC: 092644470356
- PPN: KLT-1628-18
- UNSPSC: 46182308
CAD
$1809.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Klein Tools 1628-18 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Used for Aircraft, EHS, Messenger, Guy Strand cables
- Designed for 0.75 to 1.0-Inch (19.05 to 25.4 mm) diameter cable sizes with max load of 15,000-Pound (6803 kg)
- For larger conductors, see our grips with round inside-jaw contour
- Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Documentation & Downloads
Specifications
Key Specifications
- Cable Diameter
- 0.75" to 1" (19.05 to 25.4 mm)
- Material
- Steel
- Cable Type
- Aircraft, EHS, Messenger, Guy Strand
- Locking Handle
- Yes
- Spring
- No
- Teeth Type
- Smooth
- Jaw Length (cm)
- 18.4
- Jaw Length (Inch)
- 7.25
- Weight (lb)
- 14.1
- Width
- 6.3000 in
- Weight
- 14.0850 lbs
ApplicationWire Pulling
Jaw TypeDouble V
TypeChicago Grip
Hot LatchNo
Swing LatchNo
Weight (kg)6.4
Maximum Safe Load (kg)6803.9
Maximum Safe Load (lb)15000
Height2.7000 in
Depth12.6000 in
