Klein Tools

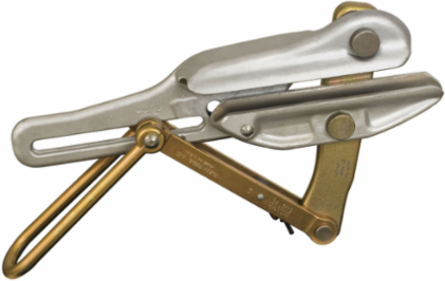

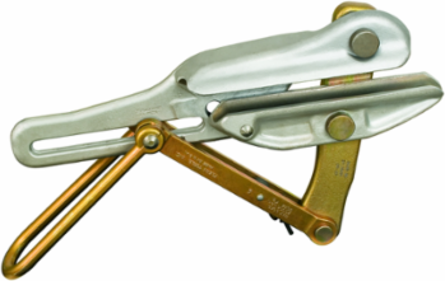

Klein Tools 1628-30 Chicago Grip 20K Load for 0.83-1.26 Inch Cables, 24.3 lbs Weight

Chicago Grip 20K Load for 0.83-1.26 Inch Cables, 24.3 lbs Weight
  • MPN: 1628-30
  • UPC: 092644470400
  • PPN: KLT-1628-30
  • UNSPSC: 46182308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2763.05/ EA

Description

Klein Tools' 1628 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

  • Round jaws are shaped to provide maximum contact with the cable, virtually eliminating conductor damage
  • These grips are special order only, please allow 30 days for delivery, not returnable
  • Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code
  • Manufactured from drop-forged, heat-treated steel for excellent durability
  • Made in USA
  • These grips are special order only, please allow 30 days for delivery, not returnable -- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code

Specifications

Specifications

Cable Diameter
0.83" to 1.26" (21.08 to 32 mm)
Maximum Safe Load
20,000 lb (9072 kg)
Type
Chicago Grip
Jaw Type
Round
Locking Handle
Yes
Spring
No
Teeth Type
Smooth
Width
8.7750 in
Weight
24.3000 lbs
Jaw Length7.25" (18.4 cm)
MaterialSteel
ApplicationWire Pulling
Cable TypeACSR, AAC
Hot LatchNo
Swing LatchNo
Height2.7000 in
Depth16.2000 in
