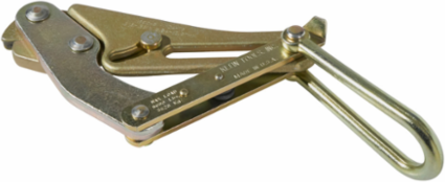

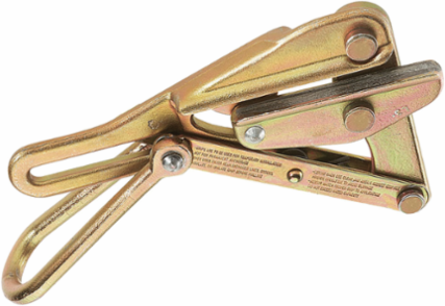

Klein Tools 1692-5 Chicago Grip for High Strength Cables, 0.218 to 0.55 Inch, Max Load 8000 lbs
- MPN: 1692-5
- UPC: 092644471834
- PPN: KLT-1692-5
- UNSPSC: 46182308
CAD
$881.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double V contour reduces the possibility of slippage and damage to the cable.
Features
- Designed for cable sizes from 0.218-Inch to 0.55-Inch (5.54 to 13.97 mm)
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- For larger conductors, see our grips with round inside-jaw contour
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Cable Type
- Aircraft, EHS, Messenger, Guy Strand
- Type
- Chicago Grip
- Material
- Steel
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Smooth
- Jaw Length (cm)
- 12.7
- Jaw Length (Inch)
- 5
- Weight (lb)
- 5.4
- Width
- 5.4000 in
- Weight
- 5.4360 lbs
Cable Diameter0.218" to 0.55" (5.54 to 13.97 mm)
Jaw TypeDouble V
ApplicationWire Pulling
Hot LatchNo
Swing LatchNo
Weight (kg)2.4
Maximum Safe Load (kg)3628.7
Maximum Safe Load (lb)8000
Height2.2500 in
Depth9.6750 in
