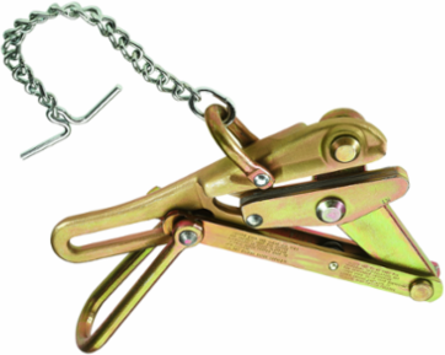

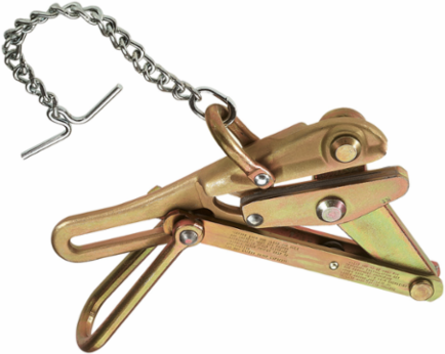

Klein Tools 1628-16AT Chicago Grip Bell-System Type H, 15,000 lb Max Load, 7.25 Inch Jaw Length
- MPN: 1628-16AT
- UPC: 092644470271
- PPN: KLT-1628-16AT
- UNSPSC: 46182308
CAD
$2037.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Klein Tools 1628-16AT Chicago Grip is identical to a Bell-System type H Strand Puller. It is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Identical to Bell-System type ''H'' strand puller, with max safe load of 15,000-Pound (6803 kg)
- Equipped with chain, toggle and shackle
- Outside diameter of support wire includes thickness of polyethylene coating
- For support wire 0.134 and larger, refer to 1659 series
- Made in USA
- "H" Strand Puller -- Equipped with a Chain, Toggle and Shackle
Documentation & Downloads
Specifications
Key Specifications
- Type
- Chicago Grip
- Material
- Steel
- Cable Diameter
- 0.31" to 0.62" (7.87 to 15.75 mm)
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Smooth
- Jaw Length (cm)
- 18.4
- Jaw Length (Inch)
- 7.25
- Weight (lb)
- 15.8
- Width
- 7.0000 in
- Weight
- 0.1000 lbs
Cable TypeAircraft, EHS, Messenger, Guy Strand
Jaw TypeDouble V
ApplicationWire Pulling
Hot LatchNo
Swing LatchNo
Weight (kg)7.2
Maximum Safe Load (kg)6803.9
Maximum Safe Load (lb)15000
Height2.5000 in
Depth13.7500 in
