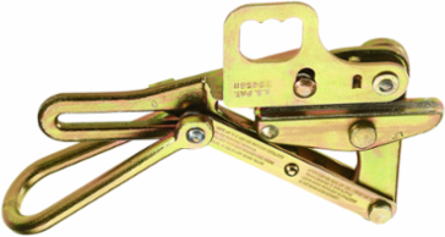

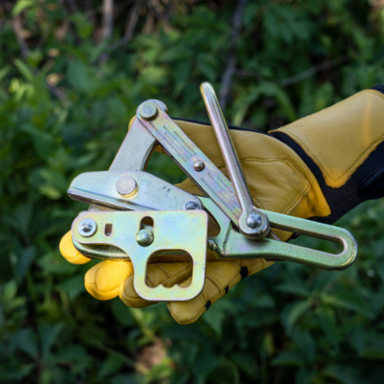

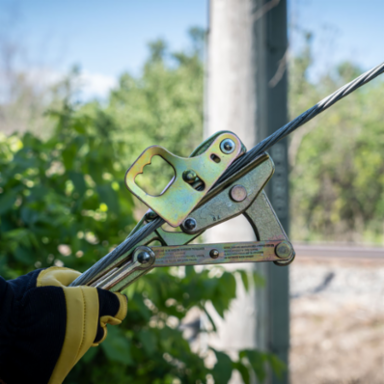

Klein Tools 1613-40H Chicago Grip 0.12-0.37 Inch Cable, 4500 lb Max Load, Double V Jaw Type
- MPN: 1613-40H
- UPC: 092644470165
- PPN: KLT-1613-40H
- UNSPSC: 46182308
CAD
$507.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Klein Tools 1613-40H Chicago Grip is designed for EHS, Messenger and Guy Strand cable. It comes with a hot-line latch for bare conductors, which allows you to place this grip on a cable with a hot-line stick. When the stick is removed, the latch closes automatically to guard against grips accidentally disengaging from the wire. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Grips are rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Works with aircraft, EHS, messenger and guy strand cable
- Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) with maximum safe load of 4500-Pound (2041 kg)
- Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Made in USA
- For larger conductors, see our grips with round inside-jaw contour
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Documentation & Downloads
Specifications
Key Specifications
- Cable Diameter
- 0.12" to 0.37" (3.05 to 9.4 mm)
- Cable Type
- Aircraft, EHS, Messenger, Guy Strand
- Type
- Chicago Grip
- Locking Handle
- Yes
- Spring
- No
- Teeth Type
- Smooth
- Jaw Length (cm)
- 10.6
- Jaw Length (Inch)
- 4.188
- Weight (lb)
- 3.15
- Width
- 5.0000 in
- Weight
- 0.1000 lbs
Jaw TypeDouble V
MaterialSteel
ApplicationWire Pulling
Hot LatchYes
Swing LatchNo
Weight (kg)1.4
Maximum Safe Load (kg)2041.2
Maximum Safe Load (lb)4500
Height1.8000 in
Depth8.0000 in
