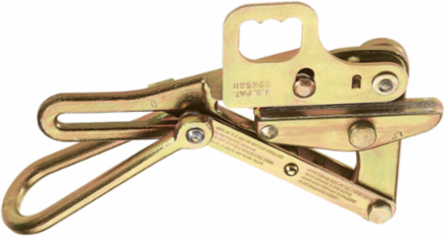

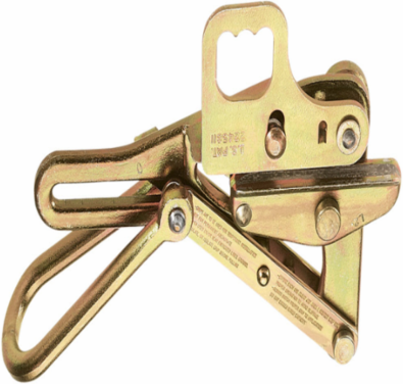

Klein Tools 161335H Chicago Grip Hot Latch for Copper Wire, Max Load 4500 lb, Jaw Length 4.188 Inch
- MPN: 161335H
- UPC: 092644471926
- PPN: KLT-161335H
- UNSPSC: 46182308
CAD
$485.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Finding the best grip to pull small copper can be challenging. Copper stretches over time becoming too thin for some grips which may cause slippage. Some smaller grips are harder to manipulate when wearing rubber gloves and are not hot latch compatible. Using a grip that's too big, too strong or too aggressive could damage the cable. Klein Tools' 1613 Series Bare Wire Chicago Grip is big enough to work with gloves but small enough to pull #6 and #8 copper without damaging it. It's just right for the job.
Features
- Lightweight, cost-effective grip pulls #8 to #6 AWG bare copper wire
- Single V groove jaw
- Max Safe Load of 4500-Pound (2100 kg)
- Locking loop handles allow the jaws to be held in an open position for easy placement on wire or cable
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Application
- Wire Pulling
- Material
- Steel
- Type
- Chicago Grip
- Locking Handle
- Yes
- Spring
- Yes
- Teeth Type
- Smooth
- Overall Length (cm)
- 32
- Overall Height (Inch)
- 6
- Maximum Safe Load (kg)
- 2041.2
- Overall Height (cm)
- 15.2
- Maximum Safe Load (lb)
- 4500
- Overall Width (cm)
- 5.4
- Width
- 5.4000 in
- Weight
- 2.8440 lbs
Cable Diameter0.1285" to 0.162" (3.3 to 4.06 mm)
Jaw TypeSingle V
Cable TypeCopper, ACSR
Hot LatchYes
Swing LatchNo
Weight (kg)1.3
Overall Width (Inch)2.12
Jaw Length (cm)10.6
Jaw Length (Inch)4.188
Overall Length (Inch)12.6
Weight (lb)2.8
Height1.8000 in
Depth7.4250 in
