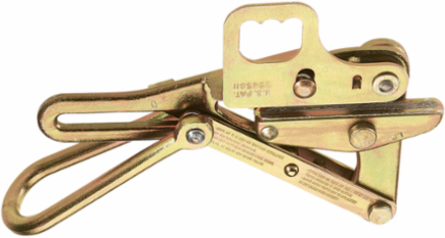

Klein Tools 1684-5H Chicago Grip with Latch for 0.218 to 0.55 Inch Cable, 8000 lb Load Capacity
- MPN: 1684-5H
- UPC: 092644471674
- PPN: KLT-1684-5H
- UNSPSC: 46182308
CAD
$905.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). Hot-line grips for both bare and insulated conductors. Grip may be placed on wire with hot-line stick. When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire. Standard hot-line grips are not supplied with springs or lock-open features.
Features
- Hot-line grips for steel stranded cable
- Grip may be placed on wire with hot-line stick
- When stick is removed, latch closes automatically to guard against grip accidentally disengaging from wire
- Standard hot-line grips are not supplied with springs or lock-open features
- Made in USA
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
Documentation & Downloads
Specifications
Key Specifications
- Cable Type
- Aircraft, EHS, Messenger, Guy Strand
- Cable Diameter
- 0.218" to 0.55" (5.54 to 13.97 mm)
- Material
- Steel
- Locking Handle
- Yes
- Spring
- No
- Teeth Type
- Smooth
- Overall Length (cm)
- 37.5
- Overall Height (Inch)
- 8.63
- Maximum Safe Load (kg)
- 3628.7
- Overall Height (cm)
- 21.9
- Maximum Safe Load (lb)
- 8000
- Overall Width (cm)
- 6
- Width
- 8.0000 in
- Weight
- 0.1000 lbs
Jaw TypeDouble V
TypeChicago Grip
ApplicationWire Pulling
Hot LatchYes
Swing LatchNo
Weight (kg)2.9
Overall Width (Inch)2.38
Jaw Length (cm)12.7
Jaw Length (Inch)5
Overall Length (Inch)14.75
Weight (lb)6.5
Height1.7600 in
Depth10.0000 in
