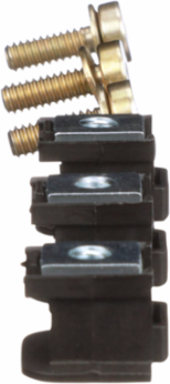

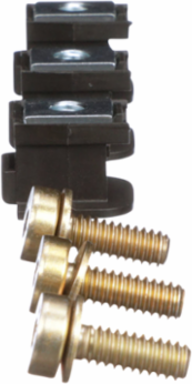

Square D S37444 Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap 1/4-20, UL, qty 3

Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap 1/4-20, UL, qty 3 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/f2a1a2cef28e5ccb1da8318296087e6120b6217f-medium.png

Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap 1/4-20, UL, qty 3

Square D S37444 Circuit breaker accessory, PowerPacT H, terminal nut, for busbar, tap 1/4-20, UL, qty 3

MPN: S37444
UPC: 785901532217
PPN: SCH-S37444

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$154.06/ EA

Qty:

Loading add to cart quantity...

Description

The PowerPact™ H-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. H-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact nut insert kit is a connection accessory for PowerPact H-Frame, circuit breaker. This product complys to UL standards and come in set of 3.

Specifications

Complementary

Thread Type: 1/4 - 20

Mounting Support: busbar

Tightening Torque: 9-10.2 N.m

StandardsUL

Quantity Per Setset of 3

Specifications

Range Of Product: PowerPact H

Product Or Component Type: nut

Accessory / Separate Part Categoryconnection accessory

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1311006EN

Pvc Free: Yes

Eu Rohs Directive: Compliant with Exemptions

Circularity ProfileENVEOLI1311006EN

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold
