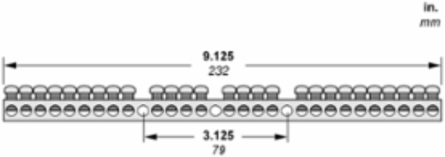

Schneider Electric PK27GTA QO Load Center Ground Bar Assembly, 27 Terminals, 0.312 Inch Depth, 0.437 Inch Height
- MPN: PK27GTA
- UPC: 785901156819
- PPN: SCH-PK27GTA
CAD
$64.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 18 degrees to accommodate top or bottom service entrance. QO Load Centers feature plated copper bus, providing superior performance and durability. This QO Load Center accessory is grounding bar kit, 27 terminals. This grounding bar is UL component recognized and CSA certified.
Features
- The PK27GTA is a dedicated equipment grounding bar kit designed specifically for Square D Load Centers and NQ Panelboards. It provides a centralized, secure location to terminate all equipment grounding conductors within the enclosure, ensuring a low-impedance path to ground that is critical for safety and the proper operation of overcurrent protection devices.
- This high-density ground bar features 27 individual terminal points. This expansive capacity allows for the organization of multiple branch circuit grounds in a single, compact strip, eliminating the need for "double-stacking" wires and ensuring your panel remains compliant with NEC and CEC wire-fill and termination standards.
- Engineered for versatility, each terminal on the PK27GTA can accommodate a wide range of wire sizes, typically from #14 to #4 AWG copper or #12 to #4 AWG aluminum. This flexibility makes it suitable for everything from standard 15A lighting circuits to larger sub-panel feeders, providing a one-size-fits-all solution for residential and commercial grounding.
- The PK27GTA is a genuine Square D accessory designed for use in QO and Homeline load centers, as well as NQ OD series panelboards. The bar comes with pre-drilled mounting holes and self-tapping screws that align perfectly with the factory-embossed mounting points in the back of the enclosure, ensuring a fast, bond-secure installation without the need for custom drilling.
- Manufactured from high-conductivity plated aluminum, the bar is designed to resist corrosion and provide excellent electrical contact over the lifespan of the panel. The use of robust screw-set terminals ensures a vibration-proof connection that maintains its integrity even in high-traffic or industrial environments.
Documentation & Downloads
Specifications
Additional
- Number of Terminals
- 27
- Depth
- 0.312 in
- Product Type
- Bar
- Warranty
- 18 months
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- China RoHS
- Pro-active declaration (out of China RoHS legal scope)
- Toxic Heavy Metal Free
- Yes
- REACH SVHC Free
- Yes
- Circularity Profile
- No specific recycling operations needed
Tightening Torque50 lb.in, AWG 6 to AWG 2/0
Height0.437 in
Product LineQO
Material ComplianceUL Component Recognized, CSA Certified
RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
RoHS Exemption InformationYes
Mercury FreeYes
Sustainable Offer StatusGreen Premium
Country of OriginUS
