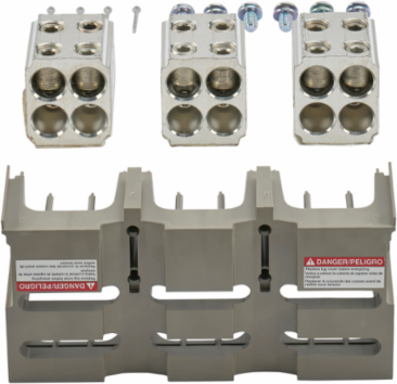

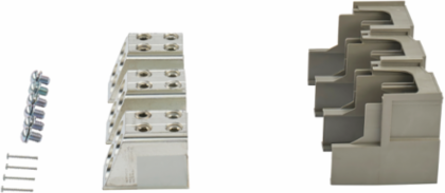

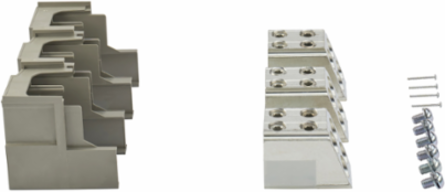

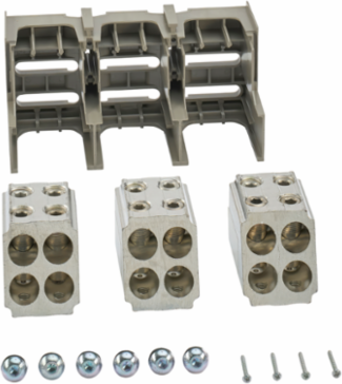

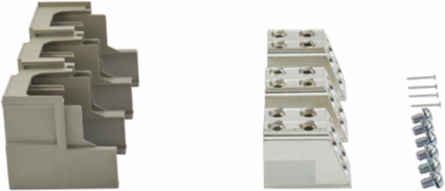

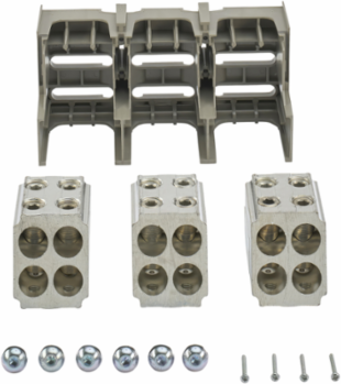

Square D AL1200P25K4 PowerPacT P Lug Kit Mechanical 1200 A Set of 4
- MPN: AL1200P25K4
- UPC: 785901375241
- PPN: SCH-AL1200P25K4
CAD
$1098.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance your circuit protection with the PowerPacT P Lug Kit from Schneider Electric, designed for seamless integration into your power distribution systems. This set of four mechanical lugs is rated for 1200 A, ensuring optimal connectivity and reliable performance for various applications. Engineered specifically for Schneider Electric circuit breakers, the lug kit facilitates efficient installation and enhances the overall functionality of your setup. By incorporating this high-quality accessory into your electrical systems, you can ensure a robust and dependable power distribution solution.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Physical Attributes
| Kcmil Size | 500 kcmil |
|---|
Complementary Attributes
| Line Rated Current | 1200-1200 A |
|---|
Important Information Attributes
| Location Of Connection | downstream, upstream |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Mounting Mode | unit mount |
| Product Or Component Type | mechanical lug |
| Range Of Product | PowerPact P |
| Sustainable Packaging | No |
| Accessory / Separate Part Category | connection accessory |
| Package Weight(Lbs) | 1.814 kg |
| Warranty (In Months) | 18 |
| Certificate Agency | UL, CSA |
|---|---|
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Traceability | No |
| Weee Scope | Out |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Awg Gauge | 3/0 AWG...500 kcmil aluminium/copper |
| Material | aluminium |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 4 |
| Returnability | Yes |
| Tightening Torque | 50-50 N.m 95-240 mm² (3/0 AWG...500 kcmil) |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | mechanical lug |
|---|
| Range Of Product | PowerPact P |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
