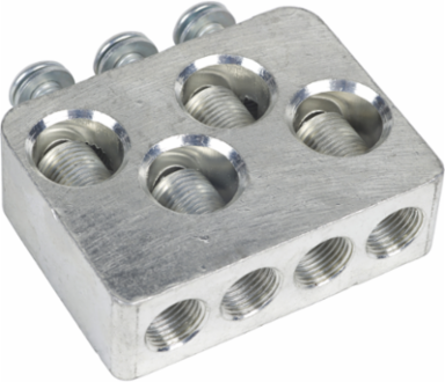

Square D AL1200R53K PowerPacT R Lug Kit, Mechanical, 1200A, 3/0 AWG to 600 kcmil, Aluminum

MPN: AL1200R53K
UPC: 785901577836
PPN: SCH-AL1200R53K

$185.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This lug kit from Schneider Electric is designed to ensure solid connections within power distribution systems, particularly for circuit breakers. Capable of accommodating conductors ranging from 3/0 AWG to 600 kcmil, it supports a robust 1200A rating, making it an excellent choice for substantial electrical demands. The mechanical design guarantees reliable performance, and its aluminum construction offers both durability and efficient conductivity, making it an essential accessory for enhancing the performance of your PowerPacT circuit breakers.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Physical Attributes

Kcmil Size	600 kcmil

Complementary Attributes

Line Rated Current	1200-1200 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Location Of Connection	downstream, upstream
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Weee Scope	Out
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	3/0 AWG...600 kcmil aluminium/copper
Energy Efficiency Optimized	False
Number Of Poles	3P
Product Or Component Type	mechanical lug
Range Of Product	PowerPact R
Sustainable Packaging	No
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	462.664 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market Segmentation	Commercial, Industrial
Certificate Agency	UL, CSA
Local Publishable Date	2025-11-13
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Type	PJL
Material	aluminium
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Tightening Torque	50-50 N.m 95-300 mm² (3/0 AWG...600 kcmil)
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536908585

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
