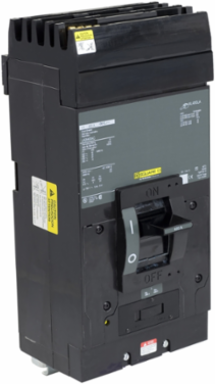

Square D LA26400BC Circuit Breaker 400A 2 Pole I-Line 600VAC 22kA Phase BC
Square D LA26400BC Circuit Breaker 400A 2 Pole I-Line 600VAC 22kA Phase BC
- MPN: LA26400BC
- UPC: 785901358473
- PPN: SCH-LA26400BC
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
This molded case circuit breaker from Schneider Electric provides robust and reliable protection for electrical systems with its efficient design and high-performance specifications. With a current rating of 400A and a two-pole configuration, it is specifically engineered for use in 600VAC applications, making it ideal for various power distribution needs. The circuit breaker’s impressive interrupting capacity of 22kA ensures it can effectively handle fault conditions, safeguarding both equipment and people. This top-tier component is essential for ensuring safety and maintaining operational efficiency in demanding environments.
Specifications
- Amperage
- 400 A
- Interrupting Capacity
- 22 kA
- Breaking Capacity Code
- A
- Magnetic Tripping Current
- 4000 A
- Number of Poles
- 2
- Wiring Configuration
- 4-wire
- Phase Connection
- BC
- Width
- 6 in (152.40 mm)
- Terminal Identifier
- AL400LA
- Product Certifications
- UL Listed, CSA
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
Voltage600 VAC
Trip Unit TechnologyThermal-magnetic
Magnetic Hold Current2000 A
Circuit Breaker ApplicationHACR rated
Mounting ModeI-Line
Electrical ConnectionLugs, load, I-Line connection, line
Height11 in (279.40 mm)
Depth5.84 in (148.34 mm)
Tightening Torque13 N.m, 42-304 mm² AWG 1...600 kcmil
Halogen Content PerformanceHalogen free plastic parts product
Mercury FreeYes
