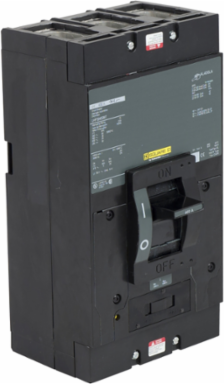

Square D LHP36400MT Circuit breaker, LH, unit mount, 400A, 3 pole, 25kA, 600VAC, 50kA, 250VDC, plug on shroud
Square D LHP36400MT Circuit breaker, LH, unit mount, 400A, 3 pole, 25kA, 600VAC, 50kA, 250VDC, plug on shroud
- MPN: LHP36400MT
- UPC: 785901512394
- PPN: SCH-LHP36400MT
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Square D LH molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LH circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LH molded case circuit breaker is a 3 pole unit mount breaker, 400A and 600VAC, with lugs on OFF end only The thermal magnetic circuit breaker has an interrupting rating of 25kA for 600VAC. The MT suffix indicates that the circuit breaker is equipped with a plug-on shroud. This accessory provides additional protection and facilitates secure mounting of the breaker onto the panelboard or busbar assembly. LH breakers are UL 489, CSA, IEC certified.
Features
- Protects electrical systems from damage caused by overloads, short circuits, and ground faults
- Provides a means to manually open a circuit
- Automatically opens a circuit under overload or short circuit conditions
- Equipped with Push-To-Trip allows the circuit breaker to be manually tripped without exposure to live parts
- Reliable protection for enclosures, panelboards, switchboards, starters & motor control centers
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, terminal, load
- Carbon Footprint Of The Distribution Phase A4
- 2.228383327123949, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 2.1496401101385745, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 739 kg CO2 eq., 739.3949682892573
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Magnetic Hold Current
- 2000 A
- Mounting Mode
- unit mount
- Poles Description
- 3P
- Product Or Component Type
- circuit breaker
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 805 kg CO2 eq.
- Medium Desc
- Circuit breaker, LH, unit mount, 400A, 3 pole, 25kA, 600VAC, 50kA, 250VDC, plug on shroud
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque13-13 N.m 42-304 mm² (AWG 1...600 kcmil), 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Carbon Footprint Of The End Of Life Phase C1 To C412 kg CO2 eq., 11.67639778652332
Carbon Footprint Of The Manufacturing Phase A1 To A350 kg CO2 eq., 49.671357924070975
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206029_V2
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Circuit Breaker ApplicationHACR rated
Halogen Free StatusHalogen free plastic parts product
Magnetic Tripping Current4000-4000 A
Package Weight Lbs7.21 kg
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Terminal IdentifierAL400LA
Trip Unit Technologythermal-magnetic
Stocking FlagN
Pep CodeENVPEP2206029EN
Pep Verification Date2028-07-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206029_V2
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2028-07-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint805.1207474371142
Environmental DisclosureENVPEP2206029EN
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2206029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 4 in
