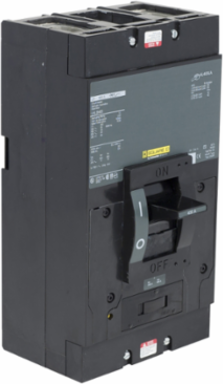

Square D LHL36200 Circuit Breaker 200A 3-Pole 600VAC Thermal Magnetic, UL Listed
- MPN: LHL36200
- UPC: 785901082125
- PPN: SCH-LHL36200
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Schneider Electric LHL36200 Circuit Breaker is a robust solution for power distribution, offering reliable thermal and magnetic protection for your electrical systems. With a capacity of 200A and three poles, it is designed to handle up to 600VAC, making it suitable for a variety of industrial applications. This UL-listed circuit breaker ensures safety and performance, providing peace of mind in demanding environments. Its molded case construction enhances durability, enabling it to withstand the rigors of daily use while effectively safeguarding your electrical installations.
Documentation & Downloads
Specifications
Additional
- Amperage
- 200 A
- Breaking Capacity Code
- H
- Magnetic Tripping Current
- 2000 A
- Circuit Breaker Application
- HACR rated
- Width
- 6 in
- Mounting Mode
- unit mount
- Electrical Connection
- Lugs, load and line
- Wire Size Range
- 42 304 mm2 (AWG 1 600 kcmil), 42 127 mm2 (AWG 1 250 kcmil)
- Product Certifications
- UL listed, IEC, CSA
- PVC Free
- Yes
- Halogen Content Performance
- Halogen free plastic parts
- Sustainable Offer Status
- Green Premium product
Voltage600 VAC
Magnetic Hold Current1000 A
Trip Unit TechnologyThermal-magnetic
Height11 in
Depth5.84 in
Poles Description3P
Tightening Torque13 N.m
Terminal IdentifierAL400LA
Rohs Exemption InformationYes
Mercury FreeYes
Eu Rohs DirectiveCompliant with Exemptions
