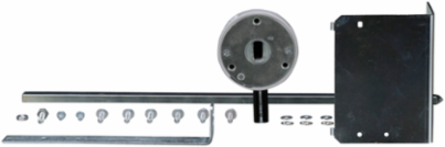

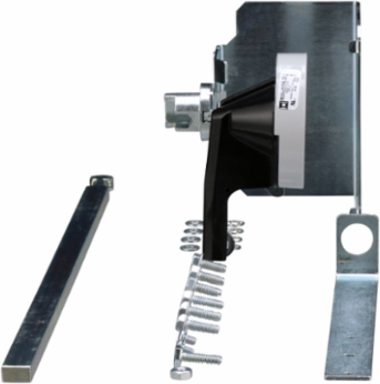

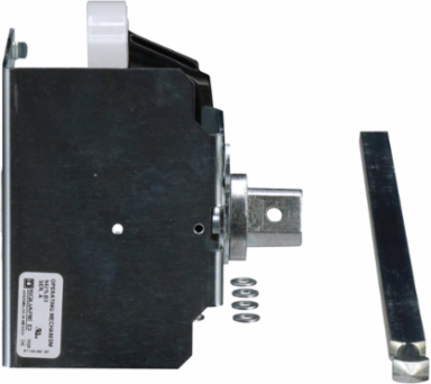

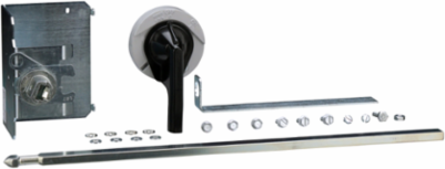

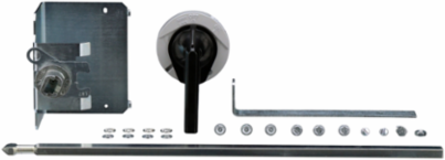

Square D 9421LB3 Circuit breaker accessory, PowerPacT B, handle kit, rotary, 3 inch, 125A, operating mechanism, long shaft

Circuit breaker accessory, PowerPacT B, handle kit, rotary, 3 inch, 125A, operating mechanism, long shaft - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/4f75a5d5f46430b62f3aba6e0a123059c43db04b-medium.png

Circuit breaker accessory, PowerPacT B, handle kit, rotary, 3 inch, 125A, operating mechanism, long shaft

Square D 9421LB3 Circuit breaker accessory, PowerPacT B, handle kit, rotary, 3 inch, 125A, operating mechanism, long shaft

MPN: 9421LB3
UPC: 785901093473
PPN: SCH-9421LB3

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$661.68/ EA

Qty:

Loading add to cart quantity...

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism will work with PowerPact B circuit breakers. Mechanism is used with 2 or 3 pole breakers with a frame size of 125A. Proper circuit breaker must be ordered separately. Kit contains a 3 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Mechanism is UL Component Recognized and CSA certified.

Specifications

Complementary

Marking: OFF - Trip - ON

Length: 3 in

Shaft Typelong

Mounting Locationon door

Offer Sustainability

Eu Rohs Directive: Under investigation

Specifications

Range Of Product: 9421L

Product Or Component TypeOperating Mechanism
