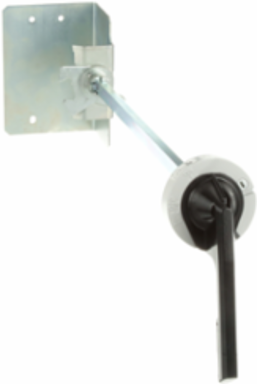

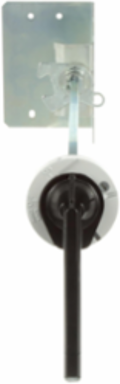

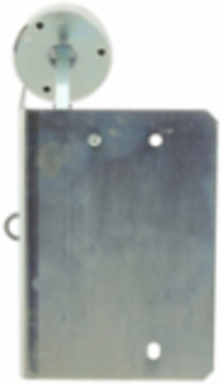

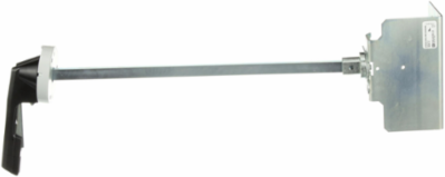

Square D 9421LJ4 Circuit breaker accessory, PowerPacT H/J, handle kit, rotary, 6 inch, 150A to 250A, operating mechanism, 3 pole, long shaft

MPN: 9421LJ4
UPC: 785901700463
PPN: SCH-9421LJ4

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$544.29/ EA

Qty:

Loading add to cart quantity...

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed Mechanism will work with PowerPact H and PowerPact J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

Specifications

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Mercury Free: Yes

Eu Rohs Directive: Compliant with Exemptions

Halogen Content Performance: Halogen free plastic parts product

Rohs Exemption InformationYes

Pvc FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Environmental

Product Compatibility: NEMA 1/3R/12 enclosure

Complementary

Shaft Type: long

Net Weight: 3.03 kg

Length6 in

Specifications

Range Of Product: 9421L

Product Or Component TypeCircuit Breaker Mechanism
