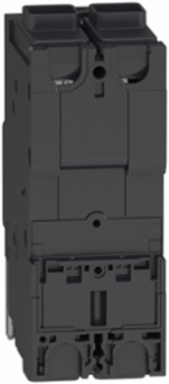

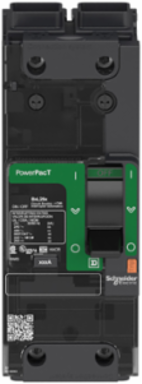

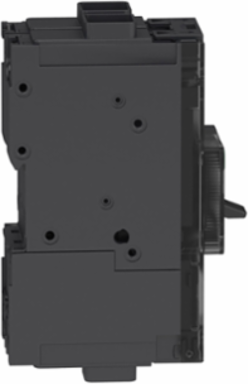

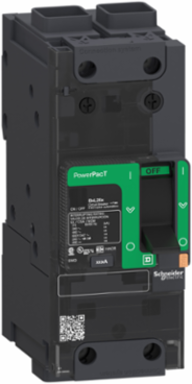

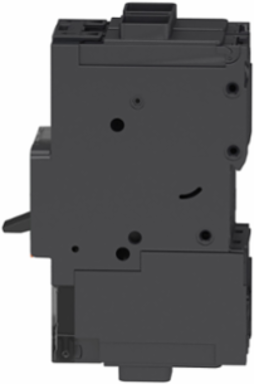

Square D BGF26100 PowerPacT B Circuit Breaker 100A 2 Pole 600Y/347VAC 18kA
- MPN: BGF26100
- PPN: SCH-BGF26100
CAD
$2328.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for advanced power distribution, the Schneider Electric BGF26100 PowerPacT B Circuit Breaker provides reliable protection with a 100A capacity and a two-pole design suitable for 600Y/347VAC systems. This molded case circuit breaker boasts an impressive short-circuit breaking capacity of 18kA, ensuring robust performance in demanding electrical environments. Its design not only enhances safety but also optimizes space efficiency, making it an essential component for modern panel configurations.
Documentation & Downloads
Specifications
Additional
- Amperage
- 100 A
- Rated Service Breaking Capacity
- 65 kA 220-240 V AC, 18 kA 500-525 V AC, 35 kA 380-415 V AC, 35 kA 440 V AC
- Breaking Capacity Code
- G
- Rated Insulation Voltage
- 800 V
- Network Frequency
- 50/60 Hz
- Continuous Current Rating
- 80 %
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles
- AWG Gauge
- AWG 14 to AWG 8 and AWG 6 to AWG 3/0 Aluminum/Copper
- Electrical Connection
- Terminal nut, ON and OFF end
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Circuit Breaker Application
- HACR rated
- IK Degree of Protection
- IK07
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m without derating; up to 5000 m with derating
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
- Standards
- NMX J-266, EN/IEC 60947-5-1, NEMA AB1, UL 489, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5
- Product Type
- Circuit breaker
- Product Name
- PowerPact B
Poles2P
Breaking Capacity65 kA 208Y/120 V AC, 35 kA 480 V AC, 20 kA 250 V DC, 18 kA 600Y/347 V AC
Rated Operational Voltage525 V AC 50/60 Hz
Impulse Withstand Voltage8 kV
Trip Unit TechnologyThermal-magnetic TM-D
Suitability for IsolationYes
Mechanical Durability15000 cycles
Connection Pitch27 mm (1.06 in)
Mounting ModeClip-on 35 mm DIN rail or screw plate
Tightening Torque5 N.m for AWG 14-4, 9 N.m for AWG 3-3/0
Width54 mm (2.13 in)
Net Weight0.669 kg (1.47 lb)
IP Degree of ProtectionIP40
Pollution Degree3
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Country of OriginUS
Mercury FreeYes
Halogen ContentHalogen free product
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Device Short NameBG 100
