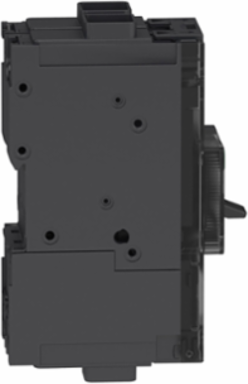

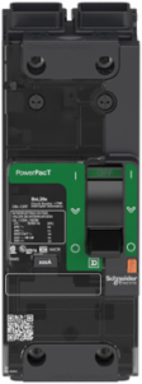

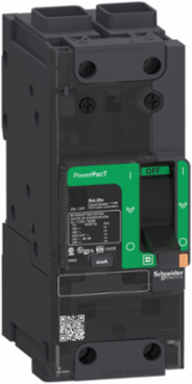

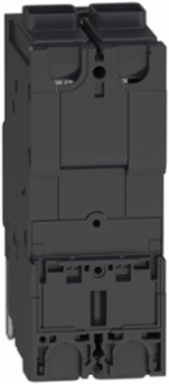

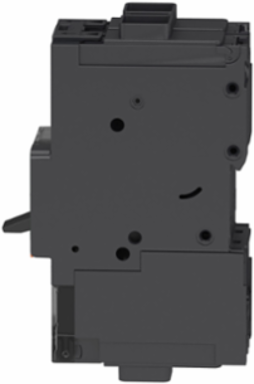

Square D BDF26015 PowerPact B Circuit Breaker, 15A, 2 Pole, 600Y/347V AC, 14kA, Thermal Magnetic
- MPN: BDF26015
- PPN: SCH-BDF26015
CAD
$1530.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust performance in power distribution systems, the PowerPact B Circuit Breaker from Schneider Electric ensures reliable protection with its thermal magnetic design. Rated at 15A and featuring a 2-pole configuration suitable for 600Y/347V AC applications, this breaker can handle fault currents up to 14kA, making it an essential component for maintaining the safety and efficiency of electrical installations. Its efficient operation and durable construction allow for dependable circuit protection in various settings, reinforcing the importance of reliability in electrical management.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A
- Breaking Capacity
- 25 kA 208Y/120 V AC 50/60 Hz UL 489, 18 kA 240 V AC 50/60 Hz UL 489, 25 kA 480/277 V AC 50/60 Hz UL 489, 14 kA 480 V AC 50/60 Hz UL 489, 18 kA 600Y/347 V AC 50/60 Hz UL 489, 14 kA 250 V DC UL 489
- Rated Service Breaking Capacity
- 25 kA 220-240 V AC 50/60 Hz IEC 60947-2, 14 kA 500-525 V AC 50/60 Hz IEC 60947-2, 18 kA 380-415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Circuit Breaker Application
- HACR rated
- Poles Description
- 2P
- Connection Pitch
- 27 mm
- Mounting Mode
- clip-on 35 mm symmetrical DIN rail, by screws plate
- Tightening Torque
- 5-5 N.m (AWG 14 to AWG 4), 9-9 N.m (AWG 3 to AWG 3/0)
- Power Wire Stripping Length
- 20 mm
- Width
- 54 mm
- Net Weight
- 0.669 kg
- Ambient Air Temperature for Storage
- -50 to 85 °C
- Quality Labels
- CE
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IK Degree of Protection
- IK07 IEC 62262
- Suitability for Isolation
- Yes IEC 60947-2
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
- Product Or Component Type
- Circuit breaker
- Device Short Name
- BD 015
Voltage600Y/347 V AC
Breaking Capacity CodeD
Rated Operational Voltage525 V AC 50/60 Hz UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Continuous Current Rating80 %
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Utilisation CategoryCategory A
Protected Poles Description2t
AWG GaugeAWG 14 to AWG 8 aluminum/copper, AWG 6 to AWG 3/0 aluminum/copper
Electrical ConnectionTerminal nut, ON and OFF end
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in
Height137 mm
Depth80 mm
Ambient Air Temperature for Operation-25 to 70 °C
Operating Altitude2000 m without derating, 5000 m with derating
StandardsEN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1, NMX J-266, UL 489, GB 14048.2, CSA C22.2 No 5
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
ColorGray RAL 7016
Mercury FreeYes
Halogen Content PerformanceHalogen free product
RangePowerPact
Control TypeToggle
