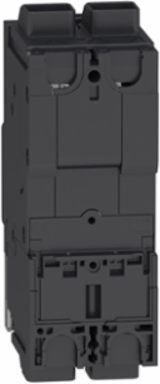

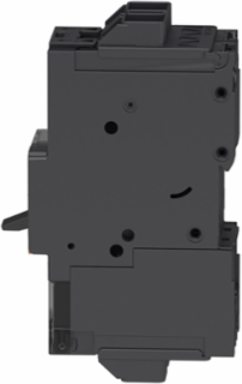

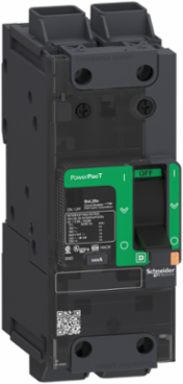

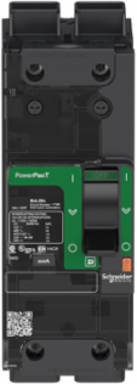

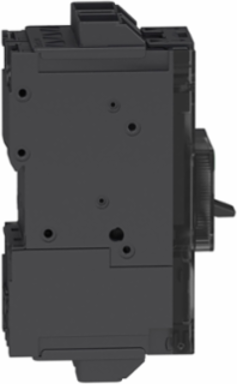

Square D BJL26015LU PowerPacT B Circuit Breaker 15A 2 Pole 600Y/347VAC 25kA
- MPN: BJL26015LU
- PPN: SCH-BJL26015LU
CAD
$2788.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Offering dependable protection for electrical systems, this molded case circuit breaker from Schneider Electric is designed to operate efficiently at 15A with a two-pole configuration, making it suitable for applications requiring up to 600Y/347VAC. With a short-circuit interrupting capacity of 25kA, it ensures robust safeguarding against potential electrical faults, enhancing safety and reliability in power distribution setups. This PowerPacT B Circuit Breaker combines advanced engineering with practical functionality, making it an essential component for modern electrical installations.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 15 A
- Breaking Capacity
- 100 kA (220-240 V), 65 kA (380-440 V), 25 kA (500-525 V), 2.5 kA (690 V)
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Poles
- 2P
- Circuit Breaker Application
- HACR rated
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Suitability for Isolation
- Yes IEC 60947-2
- Connection Pitch
- 27 mm (1.06 in)
- Electrical Connection
- Everlink lug, line and load
- Number of Slots
- 1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, by screws plate
- Width
- 54 mm (2.13 in)
- Net Weight
- 0.769 kg (1.70 lb)
- Color
- Gray RAL 7016
- Standards
- CSA C22.2 No 5, NMX J-266, GB 14048.2, EN/IEC 60947-2, NEMA AB1, UL 489, EN/IEC 60947-5-1
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
Voltage600Y/347 V AC
Rated Operational Voltage690 V AC 50/60 Hz UL 489
Network Frequency50/60 Hz
Trip Unit TechnologyThermal-magnetic TM-D
Utilisation CategoryCategory A
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Breaking Capacity CodeJ
AWG GaugeAWG 6...2/0 fine stranded aluminum/copper, AWG 14...3/0 rigid or stranded aluminum/copper
Tightening Torque5 N·m (44.25 lb·in) AWG 14...4, 9 N·m (79.66 lb·in) AWG 3...3/0
Power Wire Stripping Length20 mm (0.79 in)
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
MaterialGray housing (RAL 7016)
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Quality LabelsCE
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
Mercury FreeYes
Halogen Content PerformanceHalogen free product
