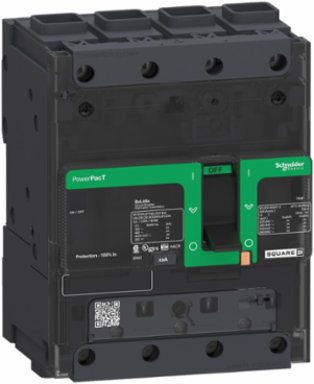

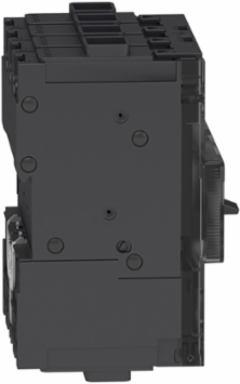

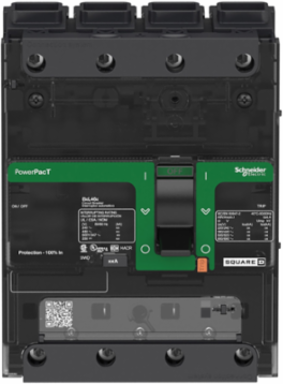

Schneider Electric BDF46100 Circuit breaker, PowerPacT B, 100A, 4 pole, 600Y/347VAC, 14kA, terminal nut, thermal magnetic, 80%
Schneider Electric BDF46100 Circuit breaker, PowerPacT B, 100A, 4 pole, 600Y/347VAC, 14kA, terminal nut, thermal magnetic, 80%
- MPN: BDF46100
- PPN: SCH-BDF46100
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3123.03/ EA
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit has terminal nuts on both termination ends. This PowerPacT B, 100A, 4 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Available in 1, 2, and 3 pole for I-Line
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- UL, CSA, NOM, IEC, CCC certified, and CE marked
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Conformance Attributes
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
StandardsCSA C22.2 No 5, UL 489, NEMA AB1, EN/IEC 60947-5-1, GB 14048.2, NMX J-266, EN/IEC 60947-2
Complementary Attributes
- Line Rated Current
- 100-100 A
Important Information Attributes
- AWG Gauge
- AWG 14...AWG 8 aluminium/copper, AWG 6...AWG 3/0 aluminium/copper
- Number Of Slots
- 1 auxiliary switch OF plug-in), 1 voltage release MN or MX plug-in), 1 alarm switch SD plug-in)
- Ics Rated Service Breaking Capacity2
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2, 14 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 380...415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3 kg CO2 eq., 2.8403278929436455
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 9 kg CO2 eq., 8.926027641774093
- Ics Rated Service Breaking Capacity5
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2, 14 kA 500...525 V AC 50/60 Hz IEC 60947-2, 18 kA 380...415 V AC 50/60 Hz IEC 60947-2, 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Circuit Breaker Application
- HACR rated
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Electrical Connection
- terminal nut, ON and OFF end
- Energy Efficiency Optimized
- False
- Local Signalling
- presence of auxiliary contacts flag green)
- Network Frequency
- 50/60 Hz
- Poles Description
- 4P
- Product Or Component Type
- circuit breaker
- Quality Labels
- CE
- Range
- PowerPact
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 162 kg CO2 eq.
- Trip Unit Technology
- thermal-magneticTM-D,
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 800 V IEC 60947-2
- Medium Desc
- Circuit breaker, PowerPacT B, 100A, 4 pole, 600Y/347VAC, 14kA, terminal nut, thermal magnetic, 80%
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 525 V AC 50/60 Hz UL 489
- Uimp Rated Impulse Withstand Voltage5
- 8 kV IEC 60947-2

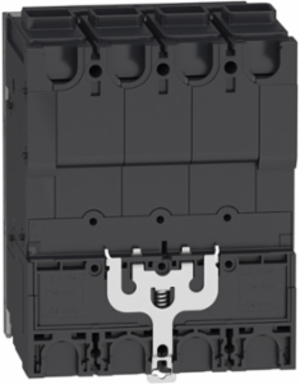

Mounting Modeclip-on 35 mm symmetrical DIN rail), by screws plate)
Tightening Torque5-5 N.m 2.5-16 mm² (AWG 14...AWG 4), 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
Carbon Footprint Of The Distribution Phase A40, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.48657929220696505, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6149 kg CO2 eq., 149.3035136191809
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Connection Pitch27 mm
Control Typetoggle
Device Short NameBD 100
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Halogen Free StatusHalogen free product
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Package Weight Lbs1.814 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protected Poles Description4t
Quantity Per Setset of 1
ReturnabilityYes
Sustainable PackagingYes
Trip Unit NameTM-D
Utilisation Categorycategory A
Ue Rated Operational Voltage2525 V AC 50/60 Hz UL 489
Uimp Rated Impulse Withstand Voltage28 kV IEC 60947-2
Stocking FlagY
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Product NamePowerPact B
Ui Rated Insulation Voltage5800 V IEC 60947-2
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 161.5564484461056
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Disclosure
- ENVPEP2311047EN
- IP Degree Of Protection
- front cover IP40 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2311047EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude6561.68 ft (2000 m) without derating, 5000 m with derating
Halogene PerformanceHalogen free product
Mercury FreeYes
9 MM Pitches12
Ambient Air Temperature For Storage-50-85 °C
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Specifications
- Depth
- 80 mm
