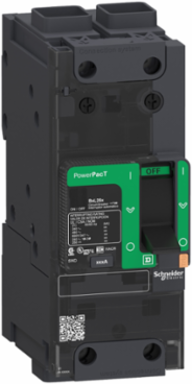

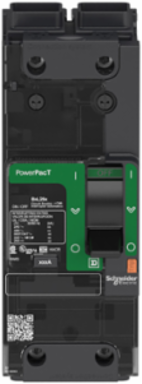

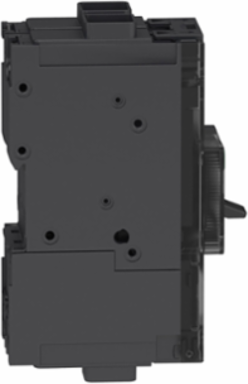

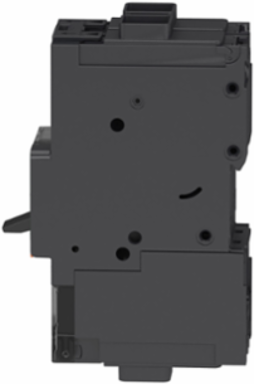

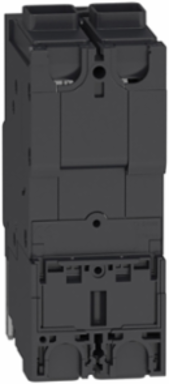

Schneider Electric BDF26050 PowerPacT B Circuit Breaker, 50A 2 Pole, 14kA, Thermal Magnetic, 80%
- MPN: BDF26050
- PPN: SCH-BDF26050
CAD
$1530.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust and reliable power distribution, the Schneider Electric BDF26050 PowerPacT B Circuit Breaker is a crucial component for safeguarding electrical systems. With a capacity of 50A and designed with 2 poles, this thermal magnetic circuit breaker provides effective protection against overloads and short circuits, ensuring safety and performance in various applications. Its 14kA interrupting capacity and 80% thermal trip setting highlight its efficiency and reliability in demanding environments, making it an essential choice for modern electrical panel setups.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 50 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
- Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Continuous Current Rating
- 80%
- Suitability for Isolation
- Yes IEC 60947-2
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Circuit Breaker Application
- HACR rated
- AWG Gauge
- AWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, by screws plate
- Tightening Torque
- 5-5 N.m (44.25 lbf.in) for AWG 14...AWG 4, 9-9 N.m (79.66 lbf.in) for AWG 3...AWG 3/0
- 9 mm Pitches
- 6
- Width
- 54 mm (2.13 in)
- Net Weight
- 0.669 kg (1.47 lb)
- Standards
- UL 489, NMX J-266, CSA C22.2 No 5, NEMA AB1, GB 14048.2, EN/IEC 60947-5-1, EN/IEC 60947-2
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Color
- Gray RAL 7016
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
Poles2P
Rated Service Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
Trip Unit TechnologyThermal-magnetic TM-D
Rated Insulation Voltage800 V IEC 60947-2
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Connection Pitch27 mm (1.06 in)
Local SignallingPresence of auxiliary contacts (flag green)
Electrical ConnectionTerminal nut, ON and OFF end
Wire Stripping Length20 mm (0.79 in)
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Quality LabelsCE
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating (6561.68 ft)
Country of OriginUS
Mercury FreeYes
Halogen ContentHalogen free product
