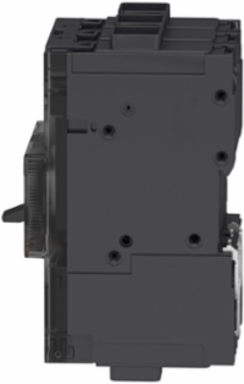

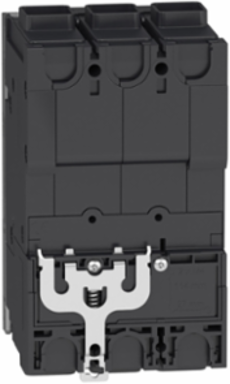

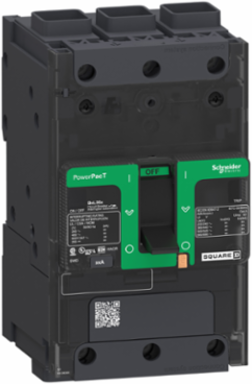

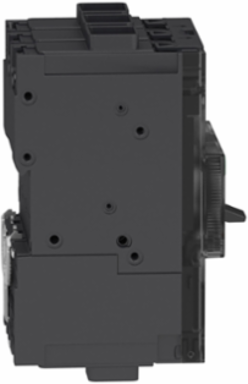

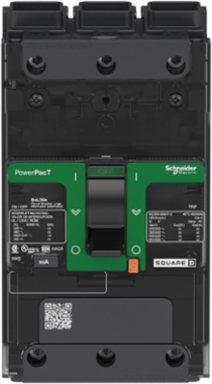

Square D BJF36015 PowerPacT B Circuit Breaker, 15A, 3 Pole, 600Y/347VAC, 25kA, Thermal Magnetic
- MPN: BJF36015
- PPN: SCH-BJF36015
CAD
$3013.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust power distribution, the Schneider Electric BJF36015 PowerPacT B Circuit Breaker is designed to safeguard electrical systems with reliability and precision. This 15A, 3-pole circuit breaker operates effectively at 600Y/347VAC and offers a substantial 25kA interrupting capacity, ensuring optimal protection in high-demand environments. Featuring thermal magnetic technology, it provides a dependable response to overload and short-circuit conditions, making it an essential component for modern electrical installations. With its high-performance capabilities, this molded case circuit breaker offers the durability and safety required for a wide range of applications.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Breaking Capacity
- 100 kA 208Y/120 V AC, 100 kA 240 V AC, 65 kA 480/277 V AC, 65 kA 480 V AC, 25 kA 600Y/347 V AC, 50 kA 250 V DC UL 489
- Continuous Current Rating
- 80 %
- Rated Service Breaking Capacity
- 100 kA 220-240 V AC, 65 kA 380-440 V AC, 25 kA 600Y/347 V AC, 50 kA 250 V DC IEC 60947-2
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Connection Pitch
- 27 mm (1.06 in)
- Electrical Connection
- Terminal nut, ON and OFF end
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Circuit Breaker Application
- HACR rated
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- PVC Free
- Yes
- Color
- Gray RAL 7016
- Network Frequency
- 50/60 Hz
- Wire Stripping Length
- 20 mm
- Poles Description
- 3 poles
- Mercury Free
- Yes
- Control Type
- Toggle
- Product Name
- PowerPact B
- Range
- PowerPact
Voltage600Y/347 V AC
Trip Unit Technologythermal-magnetic TM-D
Rated Operational Voltage690 V AC 50/60 Hz UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
AWG GaugeAWG 14...8 aluminum/copper, AWG 6...3/0 aluminum/copper
Tightening Torque5 N·m for AWG 14...4, 9 N·m for AWG 3...3/0 (44.25 lbf·in, 79.66 lbf·in)
Width81 mm (3.19 in)
Net Weight0.924 kg (2.04 lb)
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
StandardsNMX J-266, EN/IEC 60947-2, UL 489, NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-5-1, GB 14048.2
Sustainable Offer StatusGreen Premium product
Halogen ContentHalogen free
Mounting ModeClip-on 35 mm symmetrical DIN rail or screws plate
Local SignallingPresence of auxiliary contacts flag green
Protected Poles Description3 poles
Quality LabelsCE
Suitability For IsolationYes IEC 60947-2
Device Short NameBJ 015
Device ApplicationDistribution
