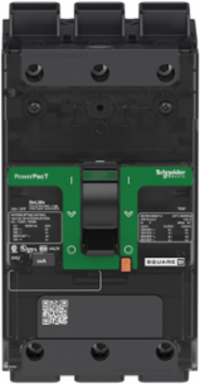

Square D BJL36050 PowerPact B Circuit Breaker, 50A, 3 Pole, 25kA, Thermal Magnetic, 80% Rating
- MPN: BJL36050
- PPN: SCH-BJL36050
CAD
$3013.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 50A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

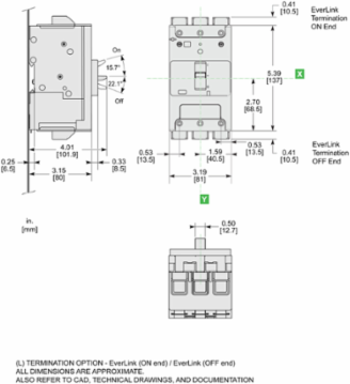

Depth80 mm
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Line Rated Current
- 50-50 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- Everlink lug, line, Everlink lug, load
- Certificate Agency
- UL, IEC, CCC, EAC, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.4942218988908441, 0.5 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 199 kg CO2 eq., 198.59737208392633
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Continuous Current Rating
- 80 %
- Device Application
- distribution
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Local Signalling
- presence of auxiliary contacts flag green)
- Mounting Mode

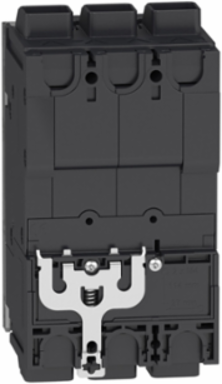

- clip-on 35 x 15 mm symmetrical DIN rail)by screws plate)
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- set of 1
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 211 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 55
- Width Nominal
- 81 mm
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 1.329 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity100 kA 220...240 V AC 50/60 Hz IEC 60947-225 kA 500...525 V AC 50/60 Hz IEC 60947-210 kA 690 V AC 50/60 Hz IEC 60947-265 kA 380...415 V AC 50/60 Hz IEC 60947-2, 65 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.8849403729375247
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.066227028817666
Local Data StatusPublishable
Return IndicatorN
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge6 AWG...2/0 AWG fine stranded aluminium/copper14 AWG...3/0 AWG rigid or stranded aluminium/copper
Connection Pitch27 mm
Control Typetoggle
Device Short NameBJ 050
Energy Efficiency OptimizedFalse
Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2
Network Frequency50/60 Hz
Number Of Slots1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)1 alarm switch SD plug-in)
Product NamePowerPact B
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal137 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz UL 489
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 211.04276138457237
- Environmental Disclosure
- ENVPEP2311047EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Halogene PerformanceHalogen free product
Mercury FreeYes
9 Mm Pitches9
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
