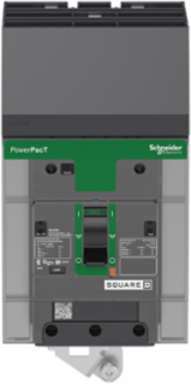

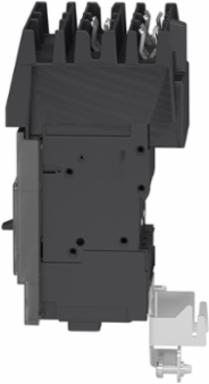

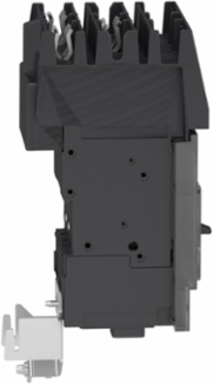

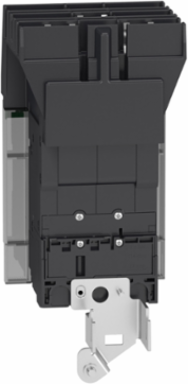

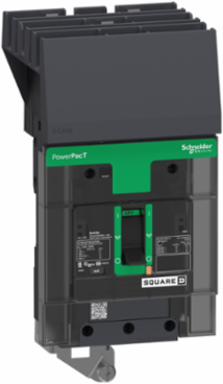

Square D BDA34025Y PowerPact B Circuit Breaker 25A 3-Pole 480Y/277VAC 18kA Thermal Magnetic
Square D BDA34025Y PowerPact B Circuit Breaker 25A 3-Pole 480Y/277VAC 18kA Thermal Magnetic
- MPN: BDA34025Y
- PPN: SCH-BDA34025Y
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1400.32/ EA
Description
PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLink™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220/240 VAC, 50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction. This PowerPact B, 25 A, 3P, circuit breaker has a breaking capacity of 18kA@480/277VAC@50/60 Hz per UL 489 standards. This circuit breaker has a thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles@440V. This I-Line breaker has a presence of auxiliary contacts green signaling function. The I-Line lug can accept an AWG gauge AWG 14 / AWG 2/0, aluminium/copper. This breakers complies to UL, IEC, CCC, EAC, CSA, NOM standards. Powerpact B-Frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm (H),81 mm (W),89 mm (D) and a weight of 1.315kg. This breaker has a continuous current rating of 80% with an ABC phase connection.
Specifications
Environment
- Ik Degree Of Protection
- IK07 IEC 62262
- Standards
- NMX J-266 || EN/IEC 60947-2 || UL 489 || CSA C22.2 No 5 || GB 14048.2 || EN/IEC 60947-5-1 || NEMA AB1
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Ambient Air Temperature For Storage
- -50-85 °C
- Operating Altitude
- < 2000 m without derating || 5000 m with derating
Ambient Air Temperature For Operation-25-70 °C
Product CertificationsUL || IEC || CCC || EAC || CSA || NOM
Pollution Degree3 IEC 60947-1
Quality LabelsCE
Complementary
- Mounting Mode
- I-Line
- [Ics] Rated Service Breaking Capacity
- 25 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 14 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 18 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 18 kA 440 V AC 50/60 Hz IEC 60947-2
- Height
- 137 mm
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Breaking Capacity Code
- D
- Local Signalling
- presence of auxiliary contacts flag green)
- Electrical Connection
- I-Line connection, line || lugs, load
- Net Weight
- 1.315 kg
- Control Type
- toggle
- Wire Stripping Length
- 20 mm
- Utilisation Category
- category A
- Breaking Capacity
- 25 kA 208Y/120 V AC 50/60 Hz UL 489 || 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480/277 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600Y/347 V AC 50/60 Hz UL 489 || 10 kA 250 V DC UL 489
- Mechanical Durability
- 20000 cycles IEC 947-1 Annex K ed 5.2
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Quantity Per Set
- set of 1
- Colour
- grey RAL 7016)
- Depth
- 89 mm
Network Frequency50/60 Hz
Trip Unit Technologythermal-magnetic
Connection Pitch27 mm
Tightening Torque3.6-4.4 N.m 2.5-6 mm² AWG 14...AWG 10) || 5-6.2 N.m 10-70 mm² AWG 8...AWG 2/0)
9 Mm Pitches9
Number Of Slots1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
Mounting Height114 mm
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Circuit Breaker ApplicationHACR rated
[In] Rated Current25-25 A
Continuous Current Rating80 %
[Ui] Rated Insulation Voltage800 V IEC 60947-2
Suitability For Isolationyes IEC 60947-2
Poles Description3P
Awg GaugeAWG 14...AWG 2/0 aluminum/copper
Width81 mm
Phase ConnectionABC
Specifications
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Device Short Name
- BD 025
Product NamePowerPact B
Device Applicationdistribution
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1610005EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
