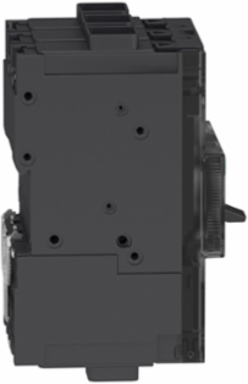

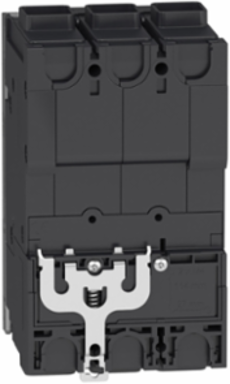

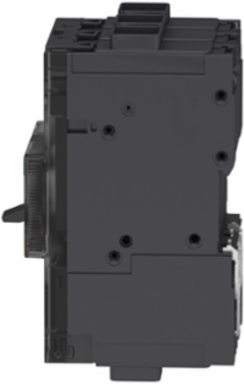

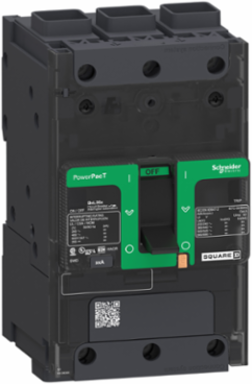

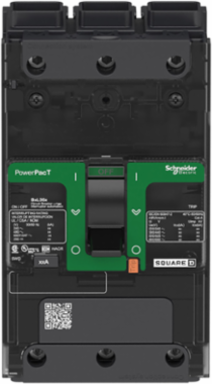

Schneider Electric BDF36030 PowerPact B Circuit Breaker 30A 3 Pole 600Y/347VAC 14kA
- MPN: BDF36030
- PPN: SCH-BDF36030
CAD
$1800.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for robust power management, this circuit breaker from Schneider Electric features a 30A rating combined with a three-pole configuration, making it suitable for a variety of applications in power distribution systems. Designed to operate at voltages up to 600Y/347VAC, it ensures reliable circuit protection with a short-circuit interrupting capacity of 14kA. The PowerPact B series embodies a commitment to both safety and efficiency, making it an essential component for modern electrical installations that demand both durability and performance. With its molded case design, this circuit breaker is built to withstand the rigors of industrial environments while providing dependable service.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC
- Breaking Capacity Code
- D
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Suitability for Isolation
- Yes IEC 60947-2
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Circuit Breaker Application
- HACR rated
- Connection Pitch
- 27 mm (1.06 in)
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Tightening Torque
- 5 N.m (44.25 lbf.in) AWG 14...AWG 4, 9 N.m (79.66 lbf.in) AWG 3...AWG 3/0
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- IP Degree of Protection
- IP40 front cover IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- Standards
- NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, UL 489, EN/IEC 60947-2
- Mercury Free
- Yes
- Halogen Content
- Halogen free
- Sustainable Offer Status
- Green Premium
- Product Or Component Type
- Circuit breaker
- Control Type
- Toggle
Number of Poles3P
Rated Service Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
Rated Operational Voltage525 V AC 50/60 Hz UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Continuous Current Rating80 %
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
AWG GaugeAWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
Electrical ConnectionTerminal nut, ON and OFF end
Power Wire Stripping Length20 mm (0.79 in)
Width81 mm (3.19 in)
Net Weight0.924 kg (2.04 lb)
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
ComplianceUL, IEC, CCC, EAC, CSA, NOM, CE
RoHSCompliant with Exemptions
PVC FreeYes
Country of OriginUS
Device Applicationdistribution
Trip Unit NameTM-D
Local SignallingPresence of auxiliary contacts flag green
