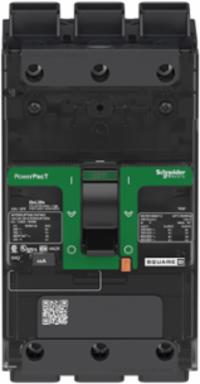

Schneider Electric BDL36030LU PowerPacT B Circuit Breaker 30A 3 Pole 600Y/347VAC 14kA
- MPN: BDL36030LU
- PPN: SCH-BDL36030LU
CAD
$2025.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust power distribution, this Schneider Electric BDL36030LU PowerPacT B circuit breaker ensures reliable protection with a 30A rating across three poles at 600Y/347VAC. Engineered for high-performance applications, it provides a breaking capacity of 14kA, making it suitable for various settings that require durable and dependable circuit management. This molded case circuit breaker not only meets the stringent demands of modern electrical systems but also integrates seamlessly into your power distribution network, ensuring safety and efficiency in operation.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 30 A
- Breaking Capacity
- 25 kA at 208Y/120 V AC, 18 kA at 240 V AC, 14 kA at 480 V AC, 18 kA at 600Y/347 V AC
- Rated Operational Voltage
- 525 V AC 50/60 Hz
- Network Frequency
- 50/60 Hz
- Trip Unit Technology
- Thermal-magnetic TM-D
- Suitability for Isolation
- Yes
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Circuit Breaker Application
- HACR rated
- AWG Gauge
- AWG 6 to 2/0 fine stranded aluminum/copper, AWG 14 to 3/0 rigid or stranded aluminum/copper

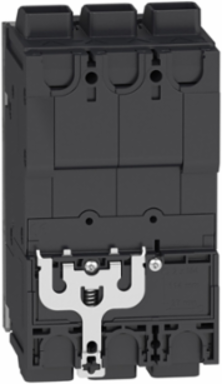

- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, by screws plate
- Tightening Torque
- 5 N.m (44.25 Lbf.In) AWG 14 to 4, 9 N.m (79.66 Lbf.In) AWG 3 to 3/0

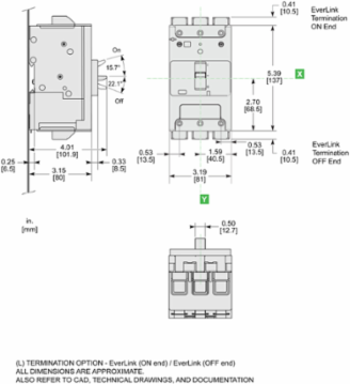

- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- Quality Labels
- CE
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- 2000 m (6562 ft) without derating, 5000 m with derating
- Country of Origin
- Mexico (MX)
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
Number of Poles3P
Rated Service Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
Voltage600Y/347 VAC
Rated Insulation Voltage800 V
Continuous Current Rating80 %
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Connection Pitch27 mm (1.06 in)
Local SignallingPresence of auxiliary contacts (flag green)
Electrical ConnectionEverlink lug (line and load)
Power Wire Stripping Length20 mm (0.79 in)
Width81 mm (3.19 in)
Net Weight1.074 kg (2.37 lb)
StandardsNMX J-266, NEMA AB1, CSA C22.2 No 5, GB 14048.2, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
RoHS ComplianceCompliant with exemptions
Sustainable Offer StatusGreen Premium product
PVC FreeYes
