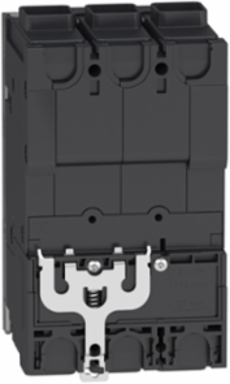

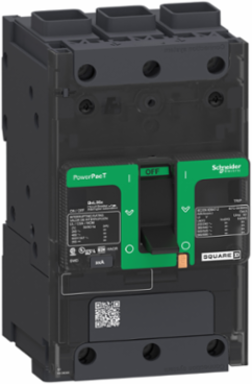

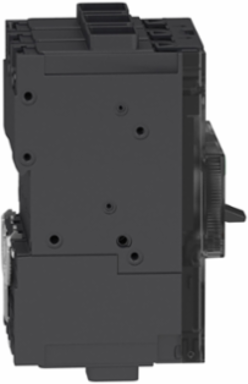

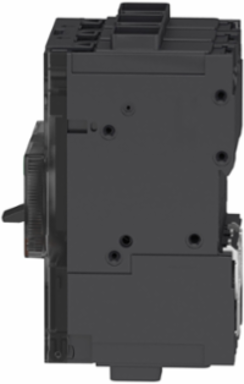

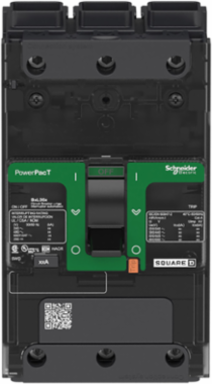

Square D BJF36030 PowerPacT B Circuit Breaker, 30A, 3 Pole, Thermal Magnetic, 25kA
- MPN: BJF36030
- PPN: SCH-BJF36030
CAD
$3013.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust power distribution needs, the Schneider Electric BJF36030 PowerPacT B Circuit Breaker provides essential protection in a compact design. This 30A, 3-pole thermal magnetic circuit breaker is adept at managing electrical loads while ensuring safety through reliable performance, capable of withstanding fault currents up to 25kA. Ideal for a variety of applications, this reliable device is a critical component in safeguarding your electrical systems against overloads and short circuits, making it a vital addition to any installation focused on safety and efficiency.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Rated Service Breaking Capacity
- 100 kA 220-240 V AC, 25 kA 500-525 V AC, 2.5 kA 690 V AC, 65 kA 380-415 V AC, 65 kA 440 V AC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Connection Pitch
- 27 mm
- Continuous Current Rating
- 80%
- Tightening Torque
- 5 N.m for AWG 14...AWG 4, 9 N.m for AWG 3...AWG 3/0
- Width
- 81 mm
- Net Weight
- 0.924 kg
- Material
- Not specified
- IK Degree of Protection
- IK07 conforming to IEC 62262
- Suitability for Isolation
- Yes IEC 60947-2
- Standards
- EN/IEC 60947-2, NMX J-266, NEMA AB1, UL 489, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1
- Circuit Breaker Application
- HACR rated
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
- Number Of Slots
- 1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
- Breaking Capacity Code
- J
- Product Name
- PowerPact B
- 9 Mm Pitches
- 9
- Eu Rohs Directive
- Compliant with Exemptions
- Colour
- Grey RAL 7016
- Trip Unit Name
- TM-D
- Pvc Free
- Yes
- Ik Degree Of Protection
- IK07 conforming to IEC 62262
- Device Short Name
- BJ 030
- Network Frequency
- 50/60 Hz
- Continuous Current Rating
- 80%
- Ambient Air Temperature For Storage
- -50 to 85 °C
- Environmental Disclosure
- ENVPEP1610005EN
- Operating Altitude
- 2000 m without derating, 5000 m with derating
Breaking Capacity100 kA 208Y/120 V AC, 100 kA 240 V AC, 65 kA 480/277 V AC, 65 kA 480 V AC, 25 kA 600Y/347 V AC 50/60 Hz UL 489, 50 kA 250 V DC UL 489
Voltage690 V AC 50/60 Hz UL 489
Rated Impulse Withstand Voltage8 kV IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Number of Poles3P
Control TypeToggle
AWG GaugeAWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
Height137 mm
Depth80 mm
Mounting Modeclip-on 35 mm symmetrical DIN rail or by screws plate
IP Degree of ProtectionIP40 front cover IEC 60529
Pollution Degree3 IEC 60947-1
Utilisation CategoryCategory A
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Sustainable Offer StatusGreen Premium product
PVC FreeYes
Local Signallingpresence of auxiliary contacts flag green
Product Or Component TypeCircuit breaker
Quality LabelsCE
Device ApplicationDistribution
Protected Poles Description3t
Electrical ConnectionTerminal nut, ON and OFF end
Wire Stripping Length20 mm
Awg GaugeAWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
Tightening Torque5-5 N.m 2.5-16 mm² AWG 14...AWG 4, 9-9 N.m 25-95 mm² AWG 3...AWG 3/0
Suitability For IsolationYes IEC 60947-2
RangePowerPact
Circularity ProfileN/A
Ambient Air Temperature For Operation-25 to 70 °C
Reach RegulationContains Substances of Very High Concern above threshold
China Rohs RegulationProduct out of China RoHS scope
