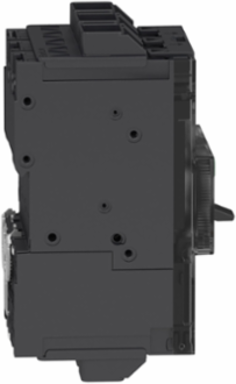

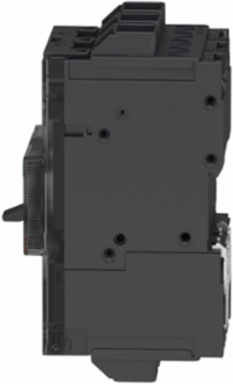

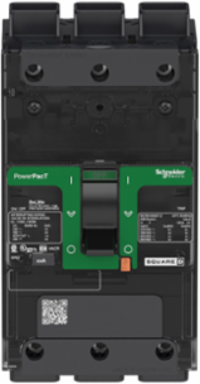

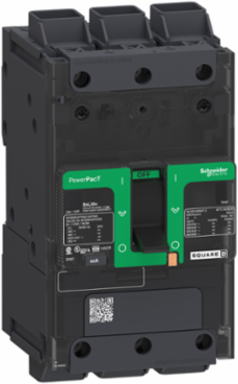

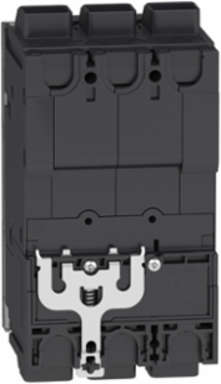

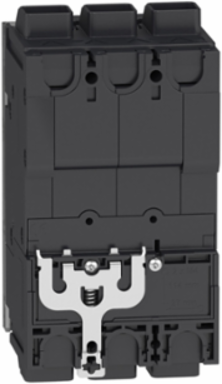

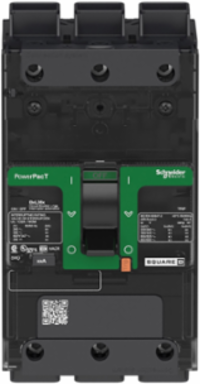

Schneider Electric BGL36040LU PowerPact B Circuit Breaker, 40A 3-Pole, 600Y/347VAC, 18kA
- MPN: BGL36040LU
- PPN: SCH-BGL36040LU
CAD
$2507.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for optimal performance in power distribution, the Schneider Electric BGL36040LU PowerPact B Circuit Breaker is a reliable solution for managing electrical circuits. This 40A, 3-pole breaker operates at 600Y/347VAC and is designed to handle fault currents up to 18kA, ensuring robust protection for your electrical systems. With its molded case design, it provides a compact and durable solution that is well-suited for various industrial applications, making it an essential component for effective circuit management in demanding environments.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 40 A
- Breaking Capacity
- 65 kA 208Y/120 V AC, 65 kA 240 V AC, 35 kA 480/277 V AC, 35 kA 480 V AC, 20 kA 250 V DC, 18 kA 600Y/347 V AC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Connection Pitch
- 27 mm
- Local Signalling
- Presence of auxiliary contacts (flag green)
- Electrical Connection
- Everlink lug, line and load
- Power Wire Stripping Length
- 20 mm

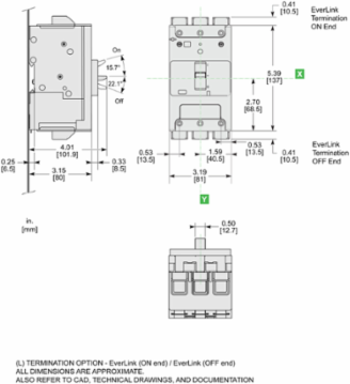

- Height
- 137 mm
- Depth
- 80 mm
- Quality Labels
- CE
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 B0C
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- Utilisation Category
- Category A
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free
- Device Short Name
- BG 040
- Range
- PowerPact
Number of Poles3P
Rated Operational Voltage525 V AC 50/60 Hz UL 489
Continuous Current Rating80 %
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Circuit Breaker ApplicationHACR rated
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Tightening Torque5 N.m for AWG 14 to AWG 4, 9 N.m for AWG 3 to AWG 3/0
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
Width81 mm
Net Weight1.074 kg
StandardsGB 14048.2, UL 489, CSA C22.2 No 5, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 B0C
Suitability for IsolationYes IEC 60947-2
ColorGray RAL 7016
PVC FreeYes
Sustainable Offer StatusGreen Premium product
Control TypeToggle
