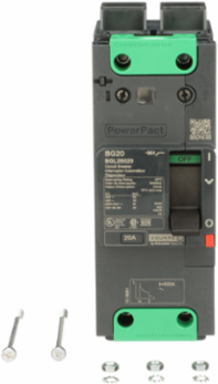

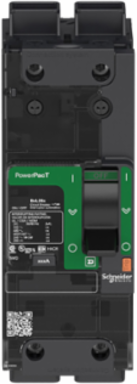

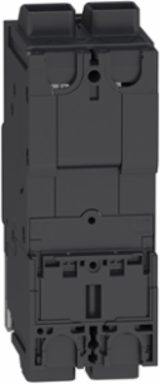

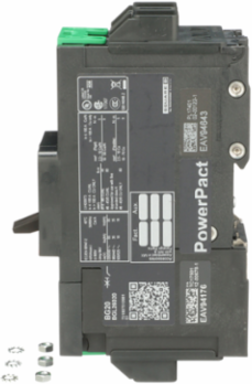

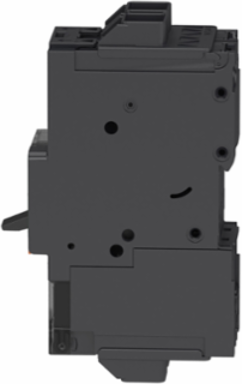

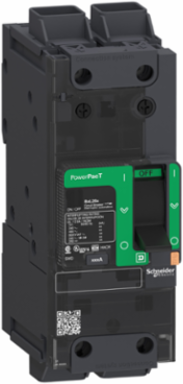

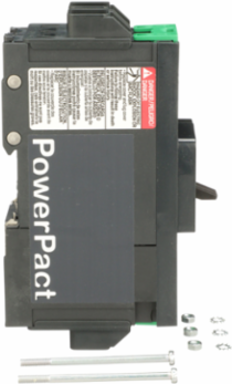

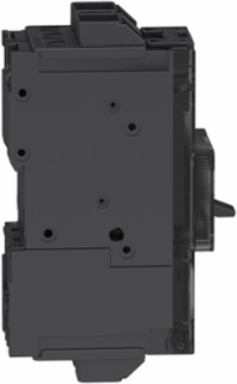

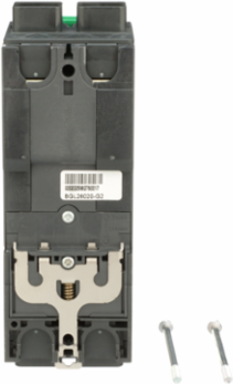

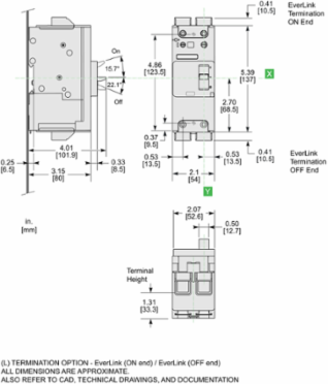

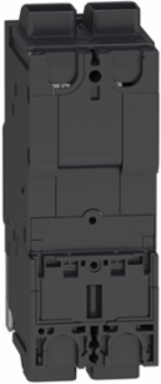

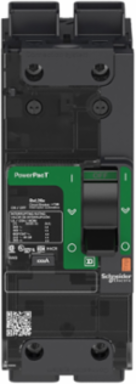

Schneider Electric BGL26020 PowerPact B Circuit Breaker, 20A 2-Pole 600Y/347VAC, 18kA

MPN: BGL26020
PPN: SCH-BGL26020

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1940.51

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 20A, 2 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	80 mm

Physical Attributes

Color	Gray RAL 7016)

Wire Stripping Length	20 mm

Complementary Attributes

Line Rated Current	20-20 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	Everlink lug, line, Everlink lug, load
Certificate Agency	UL, IEC, CCC, EAC, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]	0, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.26705815289034635, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	116 kg CO2 eq., 116.28294817324564
Local Publishable Date	2025-11-13
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1909
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Continuous Current Rating	80 %
Device Application	distribution
Electrical Durability	10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Local Signalling	presence of auxiliary contacts flag green)
Mounting Mode	clip-on 35 x 15 mm symmetrical DIN rail)by screws plate)
Number Of Poles	2P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Quantity Per Set	set of 1
Returnability	Yes
Suitability For Isolation	yes IEC 60947-2
Total Lifecycle Carbon Footprint	123 kg CO2 eq.
Utilisation Category	category A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	241.776
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	137 mm
[Ue] Rated Operational Voltage	525 V AC 50/60 Hz UL 489
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Tightening Torque	5-5 N.m 2.5-16 mm² (14 AWG...4 AWG), 9-9 N.m 25-95 mm² (3 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity	65 kA 220...240 V AC 50/60 Hz IEC 60947-218 kA 500...525 V AC 50/60 Hz IEC 60947-235 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	2 kg CO2 eq., 1.5589087592527873
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 4.8990339145925565
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	6 AWG...2/0 AWG fine stranded aluminium/copper14 AWG...3/0 AWG rigid or stranded aluminium/copper
Connection Pitch	27 mm
Control Type	toggle
Device Short Name	BG 020
Energy Efficiency Optimized	False
Mechanical Durability	20000 cycles IEC 947-1 Annex K ed 5.2
Network Frequency	50/60 Hz
Number Of Slots	1 auxiliary switch OF plug-in)1 voltage release MN or MX plug-in)
Product Name	PowerPact B
Quality Labels	CE
Range	PowerPact
Software Version	v6.2.5-6
Sustainable Packaging	Yes
Trip Unit Technology	thermal-magnetic
Pep Code	ENVPEP2311047EN
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	55
Width Nominal	54 mm
[Ui] Rated Insulation Voltage	800 V IEC 60947-2
Halogen-free Status	Halogen free product
Package Weight(Lbs)	943.472 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	123.00794899998134
Environmental Disclosure	ENVPEP2311047EN
Halogen Content Performance	Halogen free product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Halogene Performance	Halogen free product
Mercury Free	Yes
9 Mm Pitches	6
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	front cover IP40 IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2311047EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
