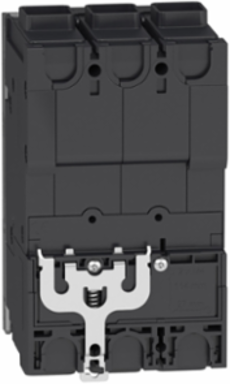

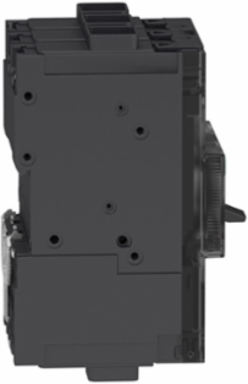

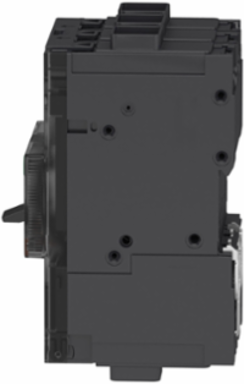

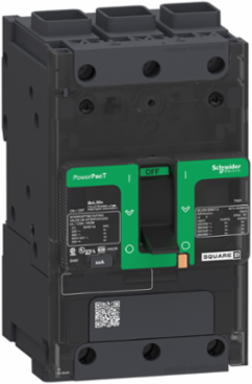

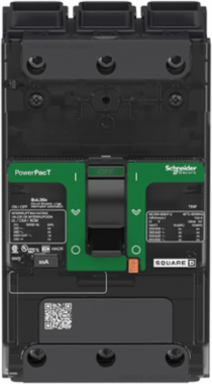

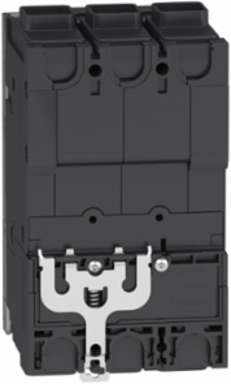

Schneider Electric BGF36050 PowerPact B Circuit Breaker, 50A, 3 Pole, 18kA, Thermal Magnetic
- MPN: BGF36050
- PPN: SCH-BGF36050
CAD
$2283.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BGF36050 PowerPact B Circuit Breaker is engineered for efficient power distribution and dependable safety. With a capacity of 50A and featuring three poles, this thermal magnetic circuit breaker provides reliable protection against overloads and short circuits. Rated for a fault current of 18kA, it is designed to handle demanding applications while ensuring robust electrical performance. As part of the Molded Case Circuit Breakers category, this equipment not only meets high industry standards but also offers peace of mind for both residential and commercial electrical systems.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 50 A
- Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Trip Unit Technology
- Thermal-magnetic TM-D
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail or screws plate
- Connection Pitch
- 27 mm (1.06 in)
- Electrical Connection
- Terminal nut, ON and OFF end
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In

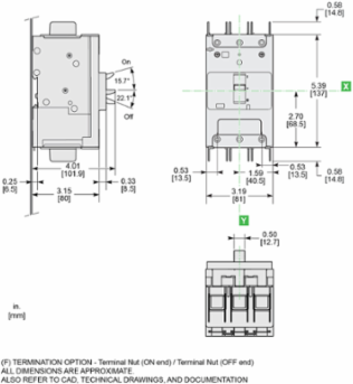

- Width
- 81 mm (3.19 in)
- Net Weight
- 0.924 kg (2.04 lb)
- Pollution Degree
- 3 IEC 60947-1
- IK Degree of Protection
- IK07 IEC 62262
- Storage Temperature Range
- -50 to 85 °C (-58 to 185 °F)
- Circuit Breaker Application
- HACR rated
- Certifications
- UL, IEC, CCC, EAC, CSA, NOM, CE
Breaking Capacity65 kA 208Y/120 V AC, 65 kA 240 V AC, 35 kA 480/277 V AC, 35 kA 480 V AC, 20 kA 250 V DC, 18 kA 600Y/347 V AC
Continuous Current Rating80 %
Poles3P
Tightening Torque5 N.m (AWG 14...AWG 4), 9 N.m (AWG 3...AWG 3/0)
AWG GaugeAWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Height137 mm (5.39 in)
Depth80 mm (3.15 in)
Suitability For IsolationYes IEC 60947-2
IP Degree of ProtectionFront cover IP40 IEC 60529
Operating Temperature Range-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
StandardsEN/IEC 60947-5-1, NEMA AB1, GB 14048.2, CSA C22.2 No 5, UL 489, NMX J-266, EN/IEC 60947-2
ColorGray RAL 7016
