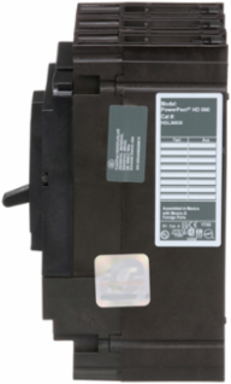

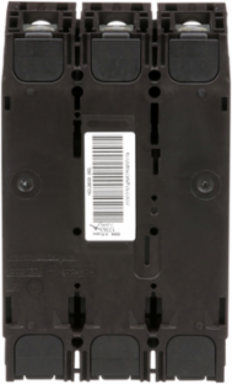

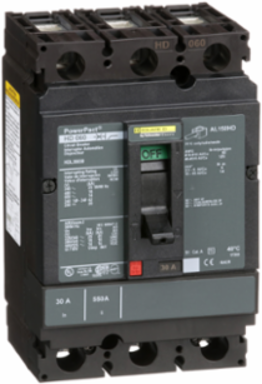

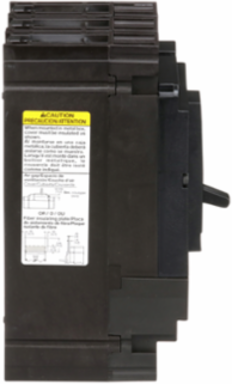

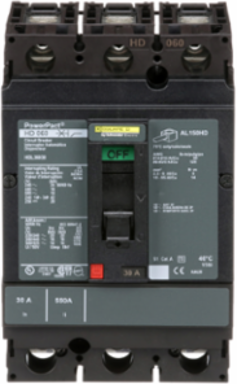

Square D HDL36030 PowerPact H Circuit Breaker, 30A, 3 Pole, 600VAC, 14kA, Thermal-Magnetic

MPN: HDL36030
UPC: 785901706632
PPN: SCH-HDL36030

$1885.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 30A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Features

This 3-pole unit delivers exceptional circuit protection using a sophisticated thermal-magnetic tripping mechanism. It utilizes a factory-calibrated bimetallic element to monitor and clear sustained thermal overloads, paired with an instantaneous magnetic ambient sensor that opens immediately during massive short-circuit faults to isolate the downstream system from grid damage.
This industrial-grade breaker is engineered for a continuous current rating of 30A at a maximum operational voltage threshold of 600V AC. This exact operational envelope allows it to comfortably control heavy 3-phase machinery, commercial HVAC chillers, and localized subpanel feed structures across high-voltage distribution networks.
The device comes factory-outfitted with Schneider Electric's premium EverLink lug matrix on both the line and load sides. This specialized terminal system utilizes a patented control mechanism that maintains persistent, high-torque pressure on the electrical conductors, completely compensating for wire strand compression over time to accept wire sizes from AWG 14 up to AWG 3/0 in aluminum or copper.
Fully manufactured to satisfy rigid North American building and industrial standards, this circuit breaker carries complete UL Listed, CSA Certified, IEC, and CE approvals. This comprehensive testing profile provides field inspectors and plant engineers with certified safety documentation, ensuring seamless municipal code sign-offs and reliable continuous plant operation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	86 mm

Communications & Management Attributes

Communication Interface	Modbus, Ethernet

Physical Attributes

Color	Black

Wire Stripping Length	16 mm

Complementary Attributes

Line Rated Current	30-30 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	lugs, line, lugs, load
Tightening Torque	5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity	25 kA 220/240 V AC 50/60 Hz IEC 60947-218 kA 380/440/415 V AC 50/60 Hz IEC 60947-214 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	3 kg CO2 eq., 3.496683447881402
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	10 kg CO2 eq., 9.516219096513307
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2206027_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2539
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Awg Gauge	14 AWG...3/0 AWG aluminium/copper terminal
Continuous Current Rating	80 %
Device Application	distribution
Local Signalling	switched off (OFF) 1 trip indicator green)
Magnetic Tripping Current	750-750 A
Mounting Support	lug
Number Of Poles	3P
Product Name	PowerPact H
Protected Poles Description	3t
Quantity Per Set	1
Returnability	Yes
Suitability For Isolation	yes IEC 60947-2
Terminal Identifier	AL150HD
Trip Unit Technology	thermal-magnetic
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	245.9808
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	163 mm
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage	8 kV IEC 60947-2
Package Weight(Lbs)	1.870 kg
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Number Of Slots	2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
Certificate Agency	UL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]	0.39306247872474553, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.01883459468180417, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	119 kg CO2 eq., 118.51128423899573
Local Publishable Date	2026-03-25
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Application	HACR rated
Control Type	toggle
Energy Efficiency Optimized	False
Magnetic Hold Current	350 A
Mounting Mode	unit mount lug)
Network Frequency	50/60 Hz
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	circuit breaker
Quality Labels	CE
Range	PowerPact
Software Version	v6.2.4
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	132 kg CO2 eq.
Utilisation Category	category A
Pep Code	ENVPEP2206027EN
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	45
Width Nominal	104 mm
[Ui] Rated Insulation Voltage	750 V IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Operating Altitude	< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2206027_V2
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-05-01
Psr Version	PSR-0005-ed3-2023 12 08

Ambient Air Temperature For Storage	-50-85 °C, -50-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	131.93608385679698
Environmental Disclosure	ENVPEP2206027EN
Ip Degree Of Protection	front cover IP40 IEC 60529
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2206027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
