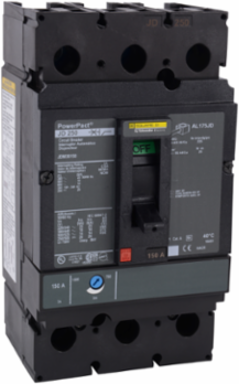

Circuit breaker, PowerPacT J, 150A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

Documentation & Downloads

Square D JDM36150 Circuit breaker, PowerPacT J, 150A, 3 pole, 600VAC, 14kA, lugs, thermal magnetic, 80%

MPN: JDM36150
PPN: SCH-JDM36150
UNSPSC: 39121601

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line side and terminal nuts on the load side. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Documentation & Downloads

Specifications

Key Specifications

Length: 25 mm

Height: 4.5 in

Product Or Component Type: circuit breaker

Range: PowerPact

Width104 mm

Weight2.4 kg

Product NamePowerPact J

Device Applicationdistribution

Complementary

Mounting Mode: unit mount lug)

Terminal Identifier: AL175JD

Trip Unit Technology: thermal-magnetic

[Ue] Rated Operational Voltage: 600 V AC 50/60 Hz IEC 60947-3

Mounting Support: lug

Magnetic Tripping Current: 1750-1750 A

Number Of Slots: 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Mounting Height: 4.5 in

[Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2

Control Type: toggle

Wire Stripping Length: 25 mm

Line Rated Current: 150-150 A

Continuous Current Rating: 80 %

[Ui] Rated Insulation Voltage: 750 V IEC 60947-2

Communication Interface: Modbus || Ethernet

Protection Type: overload protection || short-circuit protection

Width: 104 mm

Phase Connection: ABC

Network Frequency50/60 Hz

[Ics] Rated Service Breaking Capacity25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Height191 mm

Tightening Torque25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)

Breaking Capacity CodeD

Local Signallingswitched off (OFF) 1 trip indicator green)

Electrical Connectionlugs, line || terminal nut, load

Net Weight2.4 kg

Magnetic Hold Current750 A

Circuit Breaker ApplicationHACR rated

Utilisation Categorycategory A

Long Time Pick-Up Adjustment Range0.25...1 x In

Breaking Capacity25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Suitability For Isolationyes IEC 60947-2

Poles Description3P

Awg GaugeAWG 4...AWG 4/0 aluminium/copper terminal

Depth86 mm

Environment

Ambient Air Temperature For Operation: -25-70 °C

Product Certifications: UL || CSA || NOM

Pollution Degree: 3 IEC 60947-1

Quality Labels: CE

StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Ip Degree Of Protectionfront cover IP40

Ambient Air Temperature For Storage-50-85 °C

Operating Altitude< 6561.68 ft (2000 m) without derating || 5000 m with derating

Contractual warranty

Warranty: 18 months

Offer Sustainability

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2206031EN

Pvc Free: Yes

California Proposition 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
