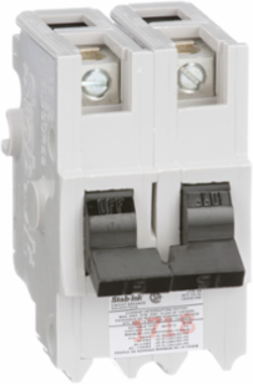

Federal Pioneer NB260 Stab-Lok Circuit Breaker 60A 2 Pole 120/240V AC Bolt-On 10kA
- MPN: NB260
- UPC: 047569384516
- PPN: SCH-NB260
CAD
$239.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 60A, 120/240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- The Schneider Electric NB260 is an authentic Stab-Lok miniature circuit breaker designed strictly for legacy Federal Pioneer (FPE) residential or commercial panels requiring a secure bolt-on configuration. This specialized bolt-on mounting mechanism guarantees a rigid, vibration-resistant connection to the bus bar, providing a seamless replacement that eliminates physical compatibility issues or installation delays on service calls.
- Engineered as a 2-pole, 60A circuit breaker operating at 120/240V AC, this unit is built to manage heavy electrical loads such as sub-panels, vehicle charging stations, or large commercial HVAC machinery. Delivering continuous, reliable current distribution without premature thermal tripping, it satisfies the strict power demands of demanding residential upgrades and commercial applications alike.
- Featuring a 10 kA (10,000 AIR) interrupting rating, this thermal-magnetic molded case circuit breaker safely detects and interrupts severe overloads and high-fault currents before they can damage downstream equipment. This heavy-duty short-circuit protection safeguards sensitive electronics and infrastructure while keeping your system fully compliant with municipal safety codes.
- Equipped with robust screw connectors, the terminal lugs accept wire ranges from AWG 14 to AWG 2 (aluminum/copper) or AWG 4 to AWG 2/0 (aluminum/copper) for maximum field flexibility. The clean mechanical layout ensures rapid, secure wire terminations that reduce resistance and prevent hazardous hot spots within the panel enclosure.
- This genuine Federal Pioneer by Schneider Electric product carries full CSA approval.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
Product Or Component Typeminiature circuit-breaker
Complementary
- Mounting Mode
- bolt-on
- Poles Description
- 2P
- [In] Rated Current
- 60 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Breaking Capacity10 kA
Electrical Connectionscrew connector
Awg GaugeAWG 14...AWG 2 aluminum/copper || AWG 4...AWG 2/0 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
