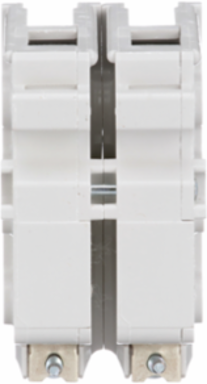

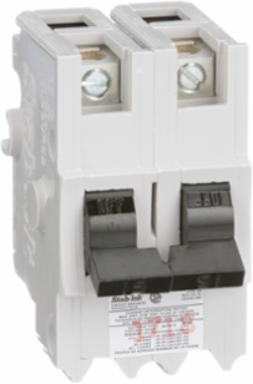

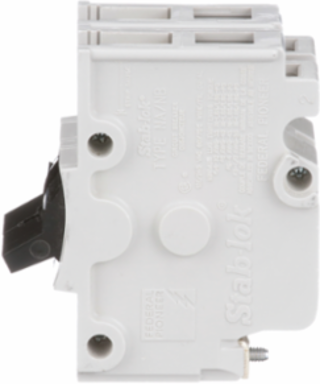

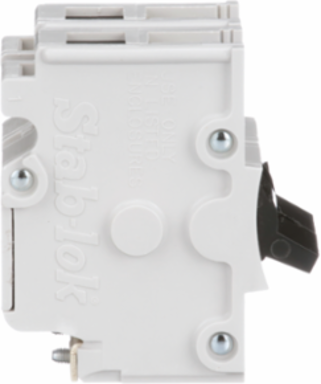

Federal Pioneer NB215 Stab-Lok Circuit Breaker 15A 2 Pole 120/240V AC 10kA Bolt-On Mount
- MPN: NB215
- UPC: 047569384295
- PPN: SCH-NB215
CAD
$197.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 15A, 120/240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- The NB215 is a classic bolt-on thermal-magnetic circuit breaker specifically designed for NQOD and older Schneider/Square D lighting and distribution panels. Unlike "plug-on" alternatives, the bolt-on connection ensures a high-integrity, vibration-resistant electrical contact that prevents overheating and terminal fatigue in commercial and industrial settings.
- Featuring a dedicated 2-pole design with an internal common trip mechanism, the NB215 ensures that if one leg of the circuit experiences a fault, both poles open simultaneously. This critical safety feature prevents "single-phasing" damage to multi-wire branch circuits and small 240V motors, saving you from expensive equipment repairs and downtime.
- With a 10,000 Ampere Interrupting Capacity (AIC), this breaker is engineered to safely quench high-energy arcs during a short circuit. This industrial-grade rating ensures your facility remains compliant with local electrical codes and provides a robust line of defense for sensitive downstream electronics and lighting ballasts.
- The NB215 utilizes a dual-action trip curve: a magnetic element for near-instantaneous short-circuit protection and a thermal bimetal for time-delayed overload protection. This allows for the brief inrush current required to start small motors or tools while still providing the precision needed to shut down power before wire insulation is compromised.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
Product Or Component Typeminiature circuit-breaker
Complementary
- Mounting Mode
- bolt-on
- Poles Description
- 2P
- [In] Rated Current
- 15 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Breaking Capacity10 kA
Electrical Connectionscrew connector
Awg GaugeAWG 14...AWG 2 aluminum/copper || AWG 4...AWG 2/0 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
