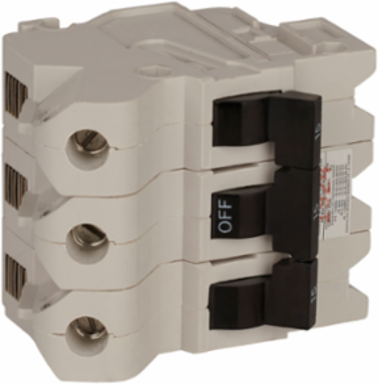

Federal Pioneer NB3P30 Stab-Lok Circuit Breaker, 30A, 3 Pole, 240VAC, 10kA, Bolt-On Mount
- MPN: NB3P30
- UPC: 047569384738
- PPN: SCH-NB3P30
CAD
$655.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a three pole 30A, 240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Features
- Engineered as a true 3-pole, 240V AC miniature circuit breaker, this unit delivers synchronous overcurrent protection across all three phases. Ideal for schools, institutional settings, and light industrial facilities, it eliminates the threat of single-phasing hazards on small three-phase motors, air conditioning compressors, and commercial heating loops by tripping all poles simultaneously.
- Built with a rugged, mechanical bolt-on installation footprint, this breaker creates a high-torque, rigid physical attachment directly to the panelboard busbar. This premium contact method permanently mitigates the localized vibration, micro-gapping, and destructive electrical arcing common with traditional plug-in style alternatives in heavy-draw environments.
- Boasting a robust 10 kA breaking capacity, this thermal-magnetic breaker safely clears high-magnitude electrical faults without risking explosive housing rupture or physical panel degradation. This essential safety threshold safeguards surrounding solid-state infrastructure, protecting downstream equipment investments and personnel during sudden line-to-ground faults.
- quipped with versatile, pressure-plate screw connectors certified for wire gauges ranging from 14 AWG up to 1/0 AWG, this breaker accommodates both copper and aluminum wiring configurations effortlessly. This generous mechanical landing space streamlines field wire routing, cuts installation times for mechanical contractors, and maintains exceptional electrical contact over long operational life cycles.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
Product Or Component Typeminiature circuit-breaker
Complementary
- Mounting Mode
- bolt-on
- Poles Description
- 3P
- [In] Rated Current
- 30 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Breaking Capacity10 kA
Electrical Connectionscrew connector
Awg GaugeAWG 14...AWG 1/0 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
